Target Concrete Saw
Features
Features
- Larger in Physical Size than
Portacut IV Saw - 20" Blade Guard Standard
- 7 5/8" Depth of Cut
- Self Propelled Forward and Reverse
- Pulley Changes not Necessary
When Changing from 14" to 20" or
20" to 14" Blade Diameters - Depth Indicator with Lock
- Water Safety Switch
| 14" Walk Behind Concrete Saws |
12" Electric Angle Cutter
Specifications
Arbor 1"
Cutting capacity:
With 12" diamond blade 4"
With 12" cut-off wheel 4"
No load speed 5,000 RPM
AMPS (115V) 15.0
Overall length 25-1/2"
Net weight 22.7 lbs.
Shipping weight 39.6 lbs.
Specifications
Arbor 1"
Cutting capacity:
With 12" diamond blade 4"
With 12" cut-off wheel 4"
No load speed 5,000 RPM
AMPS (115V) 15.0
Overall length 25-1/2"
Net weight 22.7 lbs.
Shipping weight 39.6 lbs.
 |  |  |  |  |  |
| Concrete Cutters |

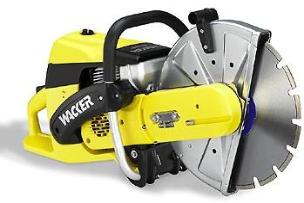

Wacker BTS 935L3
Cut-off Saw
This portable cut-off saws prevent piston jamming and is unbeatable when it
comes to performance and economic efficiency. Its extreme ruggedness is
based on the unique "L3" piston; the name L3 refers to "Long Life Lubrication".
The innovative air cleaner design and the improved engine cooling system
provide for added reliability. The BTS series offers the highest power to weight
ratio of their class plus outstanding ergonomic features.
Length x width x height (L x B x H) (without guide trolley) 31,5 x 11,4 x 15,2 in
Weight 22.5 lb
Disc diameter 14 in
Arbor diameter 1 in
Nominal blade speed 4.300 rpm
Max. cutting depth 4.8 in
Drive engine air-cooled two-stroke petrol engine
Displacement 3.9 in3
Max. power output according to DIN-ISO 4.5 hp
Fuel type petrol-oil mixture 50 : 1
Fuel consumption 2.2 US qt/h
Fuel tank capacity 1.2 US qt
Power Train from engine via centrifugal clutch and V-belt to disc
Specifications may change due to continuous product development.
Cut-off Saw
This portable cut-off saws prevent piston jamming and is unbeatable when it
comes to performance and economic efficiency. Its extreme ruggedness is
based on the unique "L3" piston; the name L3 refers to "Long Life Lubrication".
The innovative air cleaner design and the improved engine cooling system
provide for added reliability. The BTS series offers the highest power to weight
ratio of their class plus outstanding ergonomic features.
Length x width x height (L x B x H) (without guide trolley) 31,5 x 11,4 x 15,2 in
Weight 22.5 lb
Disc diameter 14 in
Arbor diameter 1 in
Nominal blade speed 4.300 rpm
Max. cutting depth 4.8 in
Drive engine air-cooled two-stroke petrol engine
Displacement 3.9 in3
Max. power output according to DIN-ISO 4.5 hp
Fuel type petrol-oil mixture 50 : 1
Fuel consumption 2.2 US qt/h
Fuel tank capacity 1.2 US qt
Power Train from engine via centrifugal clutch and V-belt to disc
Specifications may change due to continuous product development.
| Available at Hilltop Tool Rental |
BFS 1318AS
Self-propelled Walk-behind Saw
Machine's center of gravity (engine) is positioned directly over the cutting shaft to keep the blade inside the cut
providing for smooth cutting, directional stability and reduced lateral wear of the cutting blade.
One piece steel frame offers added durability. Frame will not bend or flex during operation providing for straighter,
high quality cuts.
Blade guard mounts on either left or right side providing for versatility and extremely close (within one inch of
wall) cuts.
Water sprinklers on both sides of cutting blade keep blade cool during operation for extended blade life.
Optional large water tank offers long run times in between fills or when water is not readily available.
Saws are powered by job site proven EPA approved engines with automatic low oil shut-off.
Weight 310 lb Max. disc 18 in
Arbor diameter 1 in Peripheral blade speed at Ø 350 152 ft/sec
Peripheral blade speed at Ø 400 174 ft/sec Peripheral blade speed at Ø 450 195 ft/sec
Variable speed ground control 0-80 ft/min Length x width x height (with extension arm) 65 x 25 x 37 in
Max. cutting depth 6.6 in Tank capacity (water) 26 US qt
Drive engine air-cooled single cylinder 4-stroke gasoline engine
Manufacturer Honda Displacement 23.7 in3 at 3,600 rpm
Power 13.0 hp Fuel type regular grade gasoline
Fuel consumption 4.3 US qt/h Tank capacity (fuel) 6.9 US qt
Power Train from engine via belt to cutting shaft Starter recoil starter
$75.00/day

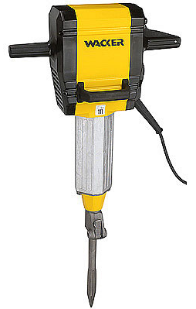

EH 27
Electric Breaker, 115V, hex
Driven by a powerful tried and tested electric universal motor with protective insulation for connecting directly to
the mains.
A specially designed protective hood, which is made of shock-resistant plastics, ensures excellent cooling of the
motor as well as ensuring good noise suppression.
The vibration-damped handles and, in particular, the almost recoilless air-cushioned percussion system, ensure a
practically vibration-free operation.
Thanks to the optimum spring mounting of the three operating handles and the complete engine protective hood
this machine is suitable for long periods of operation.
Length x width x height 29.5 x 20.9 x 8.3 in Weight without tool 59.5 lb
Shank hex 1.1 x 6.0 in Percussion rate 1,050 blows/min
Single stroke impact (measured at tip of tool) 28,0 ft. lb.
Drive engine universal a.c. motor with protective insulation
Voltage 115 1~ V Frequency 50/60 Hz
Rated current 15 A Power draw 2.4 hp
$82.50/day
Specifications may change due to continuous product development.
$75.00/day
$175.00/day
$49.50/day
