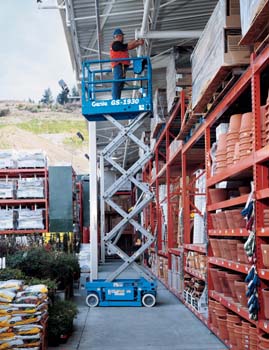

Genie
GS-1930

25 ft (7.8 m) working height
39 in (1 m) roll-out platform extension
Compact 30 in (76 cm) width
500 lb (227 kg) lift capacity f
Compact design
Automatic 25 amp battery charger
Proportional controls for lift and drive functions
Multiple disc brakes provide smooth deceleration
Drive speed interlock limits speed while elevated
Emergency stop at both platform and ground controls
Manual platform lowering valve
Manual brake release
Pothole guards
Non-marking tires
AC wiring to platform
Tilt level sensor with an audible alarm
Beeper horn
Hour meter
Was $10,995.00
Closeout Price
$9495.00
Available at
Hilltop Tool Rental
We Offer Competitive Pricing on All Special Orders
Click Here For
Genie Catalog
Model
 GTH 636
 GTH 842
 GTH 1056
Price
 $69,650
 $78,750
 $105,750
Maximum Lift Height
 36 ft
 42 ft
 50' 10"
Reach
 21 ft
 25 ft
 42'
Maximum Lift Capacity
 6,000 lb
 8,000 lb
 10,000 lbs.
Lift Capacity at Max Height
 6,000 lb
 6,000 lb
 4,000 lbs.
Lift Capacity at Max Reach
 2,000 lb
 2,000 lb
 3,000 lbs.
Raise/Lower Boom
 13/17 sec
 15/11 sec
 13/12 sec
Extend/Retract
 7/10 sec
 18/14 sec
 16/15 sec
Drive Speed
 18 mpr
 18 mph
 17 mph
Tires
 13 x 24 in
12 ply
 13 x 24 in
12 ply
 14 x 24 in,
12 ply
Draw Bar Pull
 19,200 lbs
 19,200 lbs
 28,800 lbs
Power Source
 John Deere
4045TF270 4
cylinder
turbo-charged
diesel 99 hp
 John Deere
4045TF270 4
cylinder
turbo-charged
diesel 99 hp
 John Deere
4045HF48 5 4
cylinder diesel,
125 hp
Electrical System
 12 volt
95 amp
 12 volt
95 amp
 12 volt
95 amp
Hydraulic Tank Capacity
 34 gal
 34 gal
 44 gal
Hydraulic System Capacity
(w/tank)
 50gal
 50 gal
 55 gal
Fuel Tank Capacity
 30 gal
 30 gal
 35 gal
Genie® Telehandler

You can buy a range of machines
to lift, move and place materials,
or you can save money with one
highly advanced multi-purpose
tool - the Genie® Telehandler.
With outstanding design and
performance they provide
all-around utility to answer all your
work site needs. Telehanders offer
exactly what you need for
productivity in limited-access
areas or  applications where a high
reach is needed.
