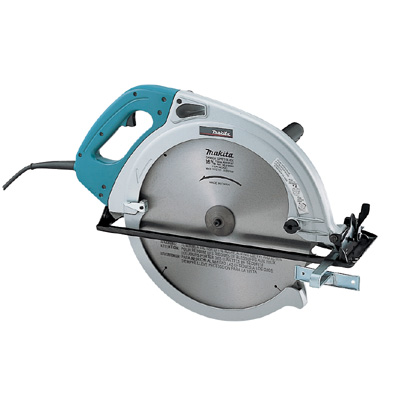

16-5/16" Circular Saw (With Electric Brake)
5402NA Large Capacity for Beam and Timber Cutting
- Large capacity blade cuts 6-1/4" at 90° and 4-
3/16" at 45°
- Weighs only 28.7 lbs. for ease of operation
- Electric brake for maximum productivity
- Powerful motor delivers 1,800 max watts out
- Low noise level at only 87dB for quiet operation
- Blade stabilizer for stable blade rotation and
superior cutting performance
- Large depth control lever for convenience and
secure adjustments
- Large support handle for increased operator
comfort and control
- Carbide tipped blade
INCLUDES:
- 32 Tooth Carbide Tipped Blade (A-90956)
- Hex wrench #6 (783204-6)
- Rip fence (164019-4)
Makita Circular Saws
Specifications
- Blade diameter 16-5/16"
- Arbor 1"
- Max. cutting capacities:
- at 90° 6-1/4"
- at 45° 4-3/16"
- No load speed 2,200 RPM
- Watts out 1,800
- AMPS (115V) 15.0
- Overall length 24-1/4"
- Net weight 28.7 lbs.
- Shipping weight 37.4 lbs.

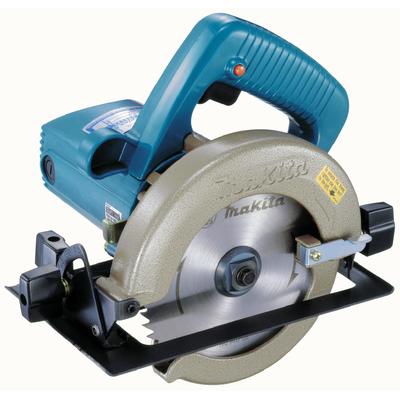

5-1/2" Circular Saw (With Electric Brake)
5005BA Cuts up to 1-3/4" at 90° and 1-3/16" at
45°
Blade on the left side
Lightweight (6.8 lbs.) for increased maneuverability
Powerful 8.0 AMP Makita motor for fast cutting action
Electric brake for maximum productivity
Lock-off button helps prevent accidental starts
Shaft lock for fast blade change
Double insulated
INCLUDES:
Combination blade (792334-2)
Rip fence (164095-8)
Socket wrench (782209-3)
Specifications
- Blade diameter 5-1/2"
- Arbor 5/8"
- Max. cutting capacities at 90° 1-
3/4"
- at 45° 1-3/16"
- No load speed 8,000 RPM
- Watts out 1,050
- AMPS (115V) 8.0
- Overall length 9-13/16"
- Net weight 7.0 lbs.
- Shipping weight 9.0 lbs.

7-1/4" Circular Saw Model: 5007F
Powerful 15.0 AMP motor delivers 5,800 RPM for proven performance and
jobsite durability
Lower guard design improves performance when making bevel and narrow cuts
Large cutting capacity (2-3/8" at 90°, 1-3/4" at 45°)
Two built-in L.E.D. lights illuminate the line of cut for increased accuracy
Well balanced design for superior handling and performance
Heavy gauge aluminum wraparound base engineered for improved durability
and straighter cuts
Built-in dust blower clears the line of cut for greater accuracy
Technologically-advanced centrifugal fan and baffle system for efficient cooling
of the motor
Bevel cuts 0-45° for the most common angles
Large and easy-to-read markings on depth and bevel scales
Flat motor housing design increases stability when changing blades
Conveniently located shaft lock for easy blade replacement
AC/DC switch allows for use with alternative power sources
All-ball bearing construction engineered for longer tool life
Ideal for framers, builders, masons and siding contractors
Double insulated
INCLUDES:
INCLUDES:
24T Carbide tipped blade (D-24826)
Blade wrench

Specifications
Blade diameter 7-1/4"
Arbor 5/8"
No load speed 5,800 RPM
AMPS (115V) 15.0
Max. Cutting Capacity at 90° 2-3/8"
at 45° 1-3/4"
Net weight 14.0 lbs.
