Man Lifts
| Available at Hilltop Tool Rental |
Genie GS-1930 Electric
Self-Propelled Scissor Lift
Lift type: Scissor
Working height:7.60 m
Platform height:5.80 m
Platform size (extended):2.63 x 0.71 m
Lifting capacity: 500 lbs (227 kg)
Power options: Electric
Width: 0.71 m
Length: 1.83 m
Closed height: 1.99 m
Gross weight: 1,270 kg
Self-Propelled Scissor Lift
Lift type: Scissor
Working height:7.60 m
Platform height:5.80 m
Platform size (extended):2.63 x 0.71 m
Lifting capacity: 500 lbs (227 kg)
Power options: Electric
Width: 0.71 m
Length: 1.83 m
Closed height: 1.99 m
Gross weight: 1,270 kg
Genie TZ34 Trailer Mounted Z-Boom
The Exclusive Genie Automatic Levelling System is
"self-levelling", it provides 11-degree leveling capability and the
system allows the machine to be set-up in less than 40 seconds.
The articulating boom structure coupled with the telescopic
primary boom offers industry leading outreach and working
envelope.
Industry leading reliability with simple relay-based control system
which increases ease of serviceability.
The TZ can be towed behind vehicles with a 50mm hitch.
Standard Features
12.19 m (40 ft) working height
5.59 m (18 ft 4 in) horizontal reach
500 lb lift capacity
Outrigger interlocks Hydraulic outriggers
Automatic leveling system Proportional speed control system
Dual pneumatic jockey wheels Tilt alarm/sensor
AC wiring to platform Mechanical surge brakes
Parking brake Hour meter
The Exclusive Genie Automatic Levelling System is
"self-levelling", it provides 11-degree leveling capability and the
system allows the machine to be set-up in less than 40 seconds.
The articulating boom structure coupled with the telescopic
primary boom offers industry leading outreach and working
envelope.
Industry leading reliability with simple relay-based control system
which increases ease of serviceability.
The TZ can be towed behind vehicles with a 50mm hitch.
Standard Features
12.19 m (40 ft) working height
5.59 m (18 ft 4 in) horizontal reach
500 lb lift capacity
Outrigger interlocks Hydraulic outriggers
Automatic leveling system Proportional speed control system
Dual pneumatic jockey wheels Tilt alarm/sensor
AC wiring to platform Mechanical surge brakes
Parking brake Hour meter
Niftylift TM34TGE
Designed specifically to give maximum performance from the most compact
chassis possible, the Nifty TM34T utilizes its versatile telescopic boom to deliver
unrivaled working outreach. Hydraulically operated outriggers make setting up
quick and easy and the telescopic axles coupled with its compact base make this
one of the most maneuverable trailer mounts available.
The TM34T's telescopic boom provides outstanding working outreach especially at
lower levels where it's needed most.
Standard Features
33ft 6in Platform height
20ft Working outreach
Telescopic Upper Boom Greater accuracy when positioning platform
Bi-Energy Available Optimizing utilization
Hydraulic Outriggers For quick & easy setup
Fully Proportional Hydraulic Controls Simple, reliable & easy to maintain
Telescopic Axles Access through double doorway openings
Designed specifically to give maximum performance from the most compact
chassis possible, the Nifty TM34T utilizes its versatile telescopic boom to deliver
unrivaled working outreach. Hydraulically operated outriggers make setting up
quick and easy and the telescopic axles coupled with its compact base make this
one of the most maneuverable trailer mounts available.
The TM34T's telescopic boom provides outstanding working outreach especially at
lower levels where it's needed most.
Standard Features
33ft 6in Platform height
20ft Working outreach
Telescopic Upper Boom Greater accuracy when positioning platform
Bi-Energy Available Optimizing utilization
Hydraulic Outriggers For quick & easy setup
Fully Proportional Hydraulic Controls Simple, reliable & easy to maintain
Telescopic Axles Access through double doorway openings
MEC 2633ES
Platform height 26 ft
Width 33"
Height (Stowed) 86.25"
length 98"
Ground clearance .75"
4 hp @3000 rpm electric motor
Capacity 2 person, 500 lb
Weight 4650. lb
Platform height 26 ft
Width 33"
Height (Stowed) 86.25"
length 98"
Ground clearance .75"
4 hp @3000 rpm electric motor
Capacity 2 person, 500 lb
Weight 4650. lb
GS-1930 only
$125.00 / day
$125.00 / day
GS-1930 with Trailer
$170.00 / day
$170.00 / day
MEC
$225.00 / day
$225.00 / day
MEC with Trailer
$290.00 / day
$290.00 / day
TZ34
$185.00 / day
$185.00 / day
TM34TGE
$199.95 / day
$199.95 / day
Niftylift TM50
With one of the largest working envelopes in its class the Nifty TM50 delivers
maximum reach with stability and control. Octagonal boom sections provide
strength without compromising on weight and the telescopic upper boom improves
accuracy when positioning the platform. Hydraulically operated outriggers and
controls make setting up and operating quick and easy, especially on uneven
surfaces.
The TM50's outstanding reach makes it ideal for a wide range of applications.
Standard Features
Working Height 56ft Platform Height 49ft 6in
Machine Length 20ft 4in Outrigger Type Hydralic
Safe Working Load 500lbs Working Outreach 28ft 6in
Machine Height 7ft Machine Width 5ft 5in
Working Width 14ft 5in Min Weight 4,200lbs
Cage Size 3ft 7in x 2ft 2in
With one of the largest working envelopes in its class the Nifty TM50 delivers
maximum reach with stability and control. Octagonal boom sections provide
strength without compromising on weight and the telescopic upper boom improves
accuracy when positioning the platform. Hydraulically operated outriggers and
controls make setting up and operating quick and easy, especially on uneven
surfaces.
The TM50's outstanding reach makes it ideal for a wide range of applications.
Standard Features
Working Height 56ft Platform Height 49ft 6in
Machine Length 20ft 4in Outrigger Type Hydralic
Safe Working Load 500lbs Working Outreach 28ft 6in
Machine Height 7ft Machine Width 5ft 5in
Working Width 14ft 5in Min Weight 4,200lbs
Cage Size 3ft 7in x 2ft 2in
TM50
$249.95 / day
$249.95 / day

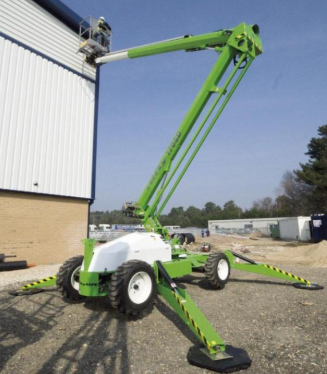

Niftylift SD50
The SD50 work platform combines the best of our self-propelled and trailer
mounted ranges.
It offers the same impressive reach capabilities as the TM50 but with the versatility
of a robust yet very lightweight drivable base.
This allows the operator to maneuver, set up and operate the SD50 work platform
without leaving the platform, especially on uneven surfaces.
Rough terrain tires and 4WD as standard allow the SD50 work platform to
maneuver easily over a wide range of site conditions and its outstanding reach
makes it ideal for tree care or construction site work.
Standard Features
Working Height 56ft Platform Height 49ft 6in
Machine Length 18 ft 4 in Outrigger Type Hydralic
Safe Working Load 500lbs Working Outreach 28ft 6in
Machine Height 6ft 11 in Machine Width 5ft 3in
Working Width 14ft 5in Min Weight 6,000lbs
Gradeability 30 % Travel Speed 5.2 mph
Turning Radius 17 ft Cage Rotation 100 degrees
Cage Size 3ft 7in x 2ft 2in
The SD50 work platform combines the best of our self-propelled and trailer
mounted ranges.
It offers the same impressive reach capabilities as the TM50 but with the versatility
of a robust yet very lightweight drivable base.
This allows the operator to maneuver, set up and operate the SD50 work platform
without leaving the platform, especially on uneven surfaces.
Rough terrain tires and 4WD as standard allow the SD50 work platform to
maneuver easily over a wide range of site conditions and its outstanding reach
makes it ideal for tree care or construction site work.
Standard Features
Working Height 56ft Platform Height 49ft 6in
Machine Length 18 ft 4 in Outrigger Type Hydralic
Safe Working Load 500lbs Working Outreach 28ft 6in
Machine Height 6ft 11 in Machine Width 5ft 3in
Working Width 14ft 5in Min Weight 6,000lbs
Gradeability 30 % Travel Speed 5.2 mph
Turning Radius 17 ft Cage Rotation 100 degrees
Cage Size 3ft 7in x 2ft 2in
SD50
$335.00 / day
$335.00 / day

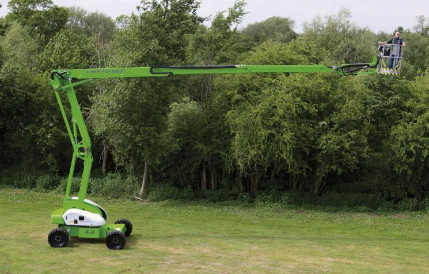

Niftylift SP64 4x4 Self Propelled Boom Lift
an excellent turning circle for better maneuverability on-site and lower
transportation costs.
The SP64 4x4 boom lift version delivers superb traction through its unique
suspension and powerful motors.
The SP64 4x4 boom lift offers exceptional outreach, whether it be up-and-over
access to awkward locations or outreach to jobs below ground level.
Proportional controls deliver smooth, measured operation while platform rotation
and fly-boom allow precise positioning anywhere in the SP64 4x4 boom lift's vast
working envelope.
The SP64 4x4 boom lift does it all still leaving plenty of space in the platform for
tools and equipment.
Standard Features
Working Height 68ft 6in Platform Height 62ft
Machine Length 22ft Machine Width 7ft 5in
Gradeability 45% (24°) Min Weight 14,330lbs
Cage Rotation 100° Safe Working Load 500lbs
Working Outreach 42ft Machine Height 7ft
Transport Length 17ft 5in Travel Speed 4.1mph
Turning Radius 13ft Jib-Boom Arc 150°
Cage Size 5ft 11in x 2ft 9in
an excellent turning circle for better maneuverability on-site and lower
transportation costs.
The SP64 4x4 boom lift version delivers superb traction through its unique
suspension and powerful motors.
The SP64 4x4 boom lift offers exceptional outreach, whether it be up-and-over
access to awkward locations or outreach to jobs below ground level.
Proportional controls deliver smooth, measured operation while platform rotation
and fly-boom allow precise positioning anywhere in the SP64 4x4 boom lift's vast
working envelope.
The SP64 4x4 boom lift does it all still leaving plenty of space in the platform for
tools and equipment.
Standard Features
Working Height 68ft 6in Platform Height 62ft
Machine Length 22ft Machine Width 7ft 5in
Gradeability 45% (24°) Min Weight 14,330lbs
Cage Rotation 100° Safe Working Load 500lbs
Working Outreach 42ft Machine Height 7ft
Transport Length 17ft 5in Travel Speed 4.1mph
Turning Radius 13ft Jib-Boom Arc 150°
Cage Size 5ft 11in x 2ft 9in
SP64
$495.00 / day
$495.00 / day
