Scissorlifts for Rent

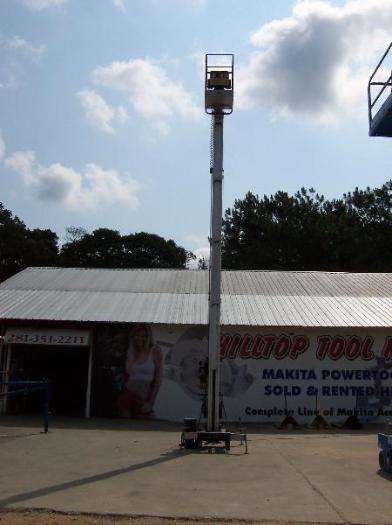

JLG25AM
Specifications
Working Height 31 ft.
Platform Height 25 ft. 2 in.
Platform Capacity 350 lbs.
Overall Base Width 29 in.
Overall Base Length 49 in.
Ground Entry Height 19 in.
Outrigger Footprint Length 62 in.
Outrigger Footprint Width 53 in.
Gross Vehicle Weight 905 lbs.
Specifications
Working Height 31 ft.
Platform Height 25 ft. 2 in.
Platform Capacity 350 lbs.
Overall Base Width 29 in.
Overall Base Length 49 in.
Ground Entry Height 19 in.
Outrigger Footprint Length 62 in.
Outrigger Footprint Width 53 in.
Gross Vehicle Weight 905 lbs.
Genie GS-1930 Electric
Self-Propelled Scissor Lift
Lift type: Scissor
Working height:7.60 m
Platform height:5.80 m
Platform size (extended):2.63 x 0.71 m
Lifting capacity: 500 lbs (227 kg)
Power options: Electric
Width: 0.71 m
Length: 1.83 m
Closed height: 1.99 m
Gross weight: 1,270 kg
Self-Propelled Scissor Lift
Lift type: Scissor
Working height:7.60 m
Platform height:5.80 m
Platform size (extended):2.63 x 0.71 m
Lifting capacity: 500 lbs (227 kg)
Power options: Electric
Width: 0.71 m
Length: 1.83 m
Closed height: 1.99 m
Gross weight: 1,270 kg
Haulotte

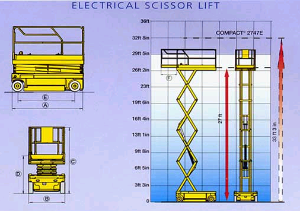

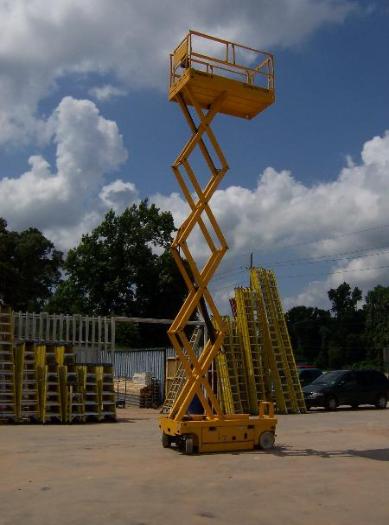

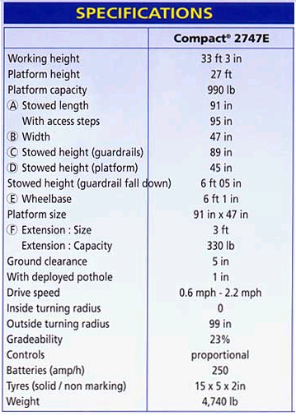

Compact 2747 E
Compact 2747 E

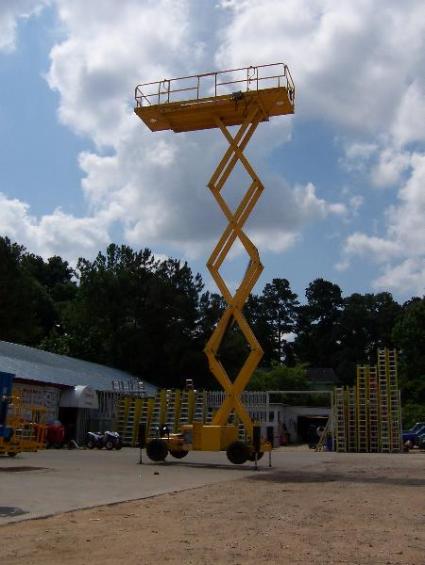

Haulotte HS 4388 RT
Specifications
Platform Height 42 ft 7 in
Platform Capacity 1.543 lb
Length 13 ft 6 in
Width 7 ft 4 in
Stowed Height 6 ft 2 in
Wheelbase 8 ft 11 in
Platform size 194 in x 71 in
Platform extension 3 ft 3 in
Drive speed 0.7 / 3.7 mph
Ground clearance 14 in
Power source Diesel 32 hp (23.6 kw)
Gradeability (2wd / 4wd) 45%
Brakes Disc - Hydraulic actuated
Drive Dual front wheel
Weight 13.560 lb
Specifications
Platform Height 42 ft 7 in
Platform Capacity 1.543 lb
Length 13 ft 6 in
Width 7 ft 4 in
Stowed Height 6 ft 2 in
Wheelbase 8 ft 11 in
Platform size 194 in x 71 in
Platform extension 3 ft 3 in
Drive speed 0.7 / 3.7 mph
Ground clearance 14 in
Power source Diesel 32 hp (23.6 kw)
Gradeability (2wd / 4wd) 45%
Brakes Disc - Hydraulic actuated
Drive Dual front wheel
Weight 13.560 lb
