Knuckle Booms for Rent

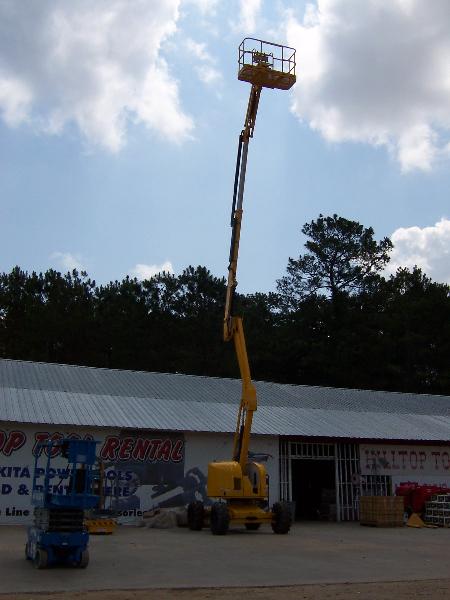

Haulotte HA 46 JRT

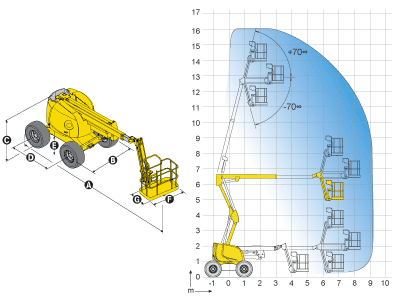

Specifications
Platform height 46 ft
Maximum outreach 29 ft 1 in
Up and over clearance 21 ft 8 in
Platform capacity 507 lb
length 22 ft 10 in
width 7 ft 7 in
stowed height 7 ft 3 in
wheelbase 6 ft 7 in
ground clearance 16 in
Travel / transport length 17 ft 3 in
Travel / transport height 7 ft 3 in
Drive speed 0.9 – 3.7 mph
Turntable rotation (continuous) 360°
Engine Deutz Diesel 38 CV (38 HP) – 28 kW
Gradeability 50%
Weight 15,960 lb
Specifications
Platform height 46 ft
Maximum outreach 29 ft 1 in
Up and over clearance 21 ft 8 in
Platform capacity 507 lb
length 22 ft 10 in
width 7 ft 7 in
stowed height 7 ft 3 in
wheelbase 6 ft 7 in
ground clearance 16 in
Travel / transport length 17 ft 3 in
Travel / transport height 7 ft 3 in
Drive speed 0.9 – 3.7 mph
Turntable rotation (continuous) 360°
Engine Deutz Diesel 38 CV (38 HP) – 28 kW
Gradeability 50%
Weight 15,960 lb
Genie TZ34 Trailer Mounted Z-Boom
The Exclusive Genie Automatic Levelling System is
"self-levelling", it provides 11-degree leveling capability and the
system allows the machine to be set-up in less than 40 seconds.
The articulating boom structure coupled with the telescopic
primary boom offers industry leading outreach and working
envelope.
Industry leading reliability with simple relay-based control system
which increases ease of serviceability.
The TZ can be towed behind vehicles with a 50mm hitch.
Standard Features
12.19 m (40 ft) working height
5.59 m (18 ft 4 in) horizontal reach
500 lb lift capacity
Outrigger interlocks Hydraulic outriggers
Automatic leveling system Proportional speed control system
Dual pneumatic jockey wheels Tilt alarm/sensor
AC wiring to platform Mechanical surge brakes
Parking brake Hour meter
The Exclusive Genie Automatic Levelling System is
"self-levelling", it provides 11-degree leveling capability and the
system allows the machine to be set-up in less than 40 seconds.
The articulating boom structure coupled with the telescopic
primary boom offers industry leading outreach and working
envelope.
Industry leading reliability with simple relay-based control system
which increases ease of serviceability.
The TZ can be towed behind vehicles with a 50mm hitch.
Standard Features
12.19 m (40 ft) working height
5.59 m (18 ft 4 in) horizontal reach
500 lb lift capacity
Outrigger interlocks Hydraulic outriggers
Automatic leveling system Proportional speed control system
Dual pneumatic jockey wheels Tilt alarm/sensor
AC wiring to platform Mechanical surge brakes
Parking brake Hour meter

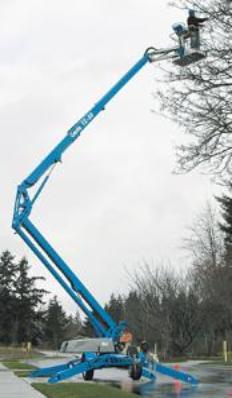

Genie TZ50 Trailer Mounted Z-Boom
The TZ-50 provides industry leading outreach and working range. It also provides many
unique features, such as hydraulic outriggers, automatic machine leveling drive & set,
and an optional hybrid DC/Gas engine.
A 4 ft 1 in (1.25 m) articulating jib boom allows you to position the platform above or
below horizontal.
It is easily towed behind vehicles that have an adequate capacity, 2 in (50 mm) ball,
and a Class 3 hitch. Several hitch receptacles are available. Genie’s maximum highway
tow speed rating of 60 mph (97 km/h) providing fast transportation to job sites.
Heavy-duty jockey wheels allow for precise positioning of the machine during setup and
transportation.
Large outrigger foot pads effectively distribute the machine weight.
Both ground and platform controls are easy to use and utilize symbols to simplify
operation.
The exclusive Genie Automatic Leveling System is “self-leveling” and is standard
equipment on all TZ-50 models. This system provides industry-leading 10 degrees
leveling capability and allows the operator to hydraulically deploy the outriggers and
automatically level the machine. Machine setup can be completed in less than 60
seconds when the operator deploys all four outriggers simultaneously.
The system self-levels the machine to 1 degree in all directions. The level sensor alarm
will not sound unless the machine is over 21/2 degrees out of level. This built-in
tolerance provides resistance to level sensor "nuisance tripping", which can be a
common occurrence on other trailer mounted booms. This feature increases
productivity and sets the Genie TZ-50 apart from the competition.
Standard Features
55 ft 6 in (16.92 m) working height 29 ft 2 in (8.9 m) working outreach
JIB Hydraulic outriggers
Outrigger interlocks Automatic leveling system
Combination hitch, an adjustable height hitch coupler system with 2" ball coupler
Variable speed control system AC wiring to platform
Hydraulic surge brakes Parking brake
Tilt alarm/sensor Dual jockey wheels
Hour meter
The TZ-50 provides industry leading outreach and working range. It also provides many
unique features, such as hydraulic outriggers, automatic machine leveling drive & set,
and an optional hybrid DC/Gas engine.
A 4 ft 1 in (1.25 m) articulating jib boom allows you to position the platform above or
below horizontal.
It is easily towed behind vehicles that have an adequate capacity, 2 in (50 mm) ball,
and a Class 3 hitch. Several hitch receptacles are available. Genie’s maximum highway
tow speed rating of 60 mph (97 km/h) providing fast transportation to job sites.
Heavy-duty jockey wheels allow for precise positioning of the machine during setup and
transportation.
Large outrigger foot pads effectively distribute the machine weight.
Both ground and platform controls are easy to use and utilize symbols to simplify
operation.
The exclusive Genie Automatic Leveling System is “self-leveling” and is standard
equipment on all TZ-50 models. This system provides industry-leading 10 degrees
leveling capability and allows the operator to hydraulically deploy the outriggers and
automatically level the machine. Machine setup can be completed in less than 60
seconds when the operator deploys all four outriggers simultaneously.
The system self-levels the machine to 1 degree in all directions. The level sensor alarm
will not sound unless the machine is over 21/2 degrees out of level. This built-in
tolerance provides resistance to level sensor "nuisance tripping", which can be a
common occurrence on other trailer mounted booms. This feature increases
productivity and sets the Genie TZ-50 apart from the competition.
Standard Features
55 ft 6 in (16.92 m) working height 29 ft 2 in (8.9 m) working outreach
JIB Hydraulic outriggers
Outrigger interlocks Automatic leveling system
Combination hitch, an adjustable height hitch coupler system with 2" ball coupler
Variable speed control system AC wiring to platform
Hydraulic surge brakes Parking brake
Tilt alarm/sensor Dual jockey wheels
Hour meter
| Available at Hilltop Tool Rental |

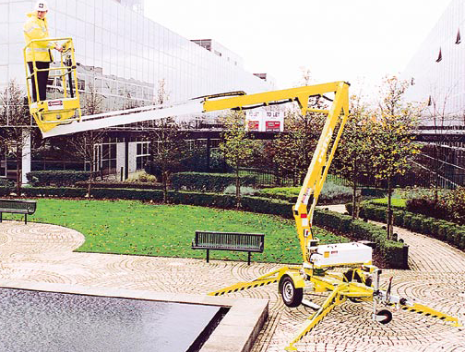

Niftylift TM34TGE
Designed specifically to give maximum performance from the most
compact chassis possible, the Nifty TM34T utilizes its versatile telescopic
boom to deliver unrivaled working outreach. Hydraulically operated
outriggers make setting up quick and easy and the telescopic axles
coupled with its compact base make this one of the most maneuverable
trailer mounts available.
The TM34T's telescopic boom provides outstanding working outreach
especially at lower levels where it's needed most.
Standard Features
33ft 6in Platform height
20ft Working outreach
Telescopic Upper Boom Greater accuracy when positioning platform
Bi-Energy Available Optimizing utilization
Hydraulic Outriggers For quick & easy setup
Fully Proportional Hydraulic Controls Simple, reliable & easy to maintain
Telescopic Axles Access through double doorway openings
Designed specifically to give maximum performance from the most
compact chassis possible, the Nifty TM34T utilizes its versatile telescopic
boom to deliver unrivaled working outreach. Hydraulically operated
outriggers make setting up quick and easy and the telescopic axles
coupled with its compact base make this one of the most maneuverable
trailer mounts available.
The TM34T's telescopic boom provides outstanding working outreach
especially at lower levels where it's needed most.
Standard Features
33ft 6in Platform height
20ft Working outreach
Telescopic Upper Boom Greater accuracy when positioning platform
Bi-Energy Available Optimizing utilization
Hydraulic Outriggers For quick & easy setup
Fully Proportional Hydraulic Controls Simple, reliable & easy to maintain
Telescopic Axles Access through double doorway openings
