Skid Steers
Engine
Komatsu Model 4D88E-1FD. Direct combustion 4 cylinder in line diesel engine. Bore x
stroke 3.47 x 3.54 in Power rated (SAE J1349) @ 2800 rpm 47 HP (80/1269/EC) @ 2800
rpm 46 HP Max. torque @ 1800 rpm 142 Nm 105 ft. lb. Water cooling system. Dry type air
filter with safety element. Electric start motor with pre-heating air system for cold weather 3°
F (-16° C)
Transmission
Hydrostatic with 2 x variable displacement pumps with 2 stage and APC system. 2 x axial
pistons motors with two speeds.Final transmission with heavy duty type roller chains
immersed in oil bath connected to the four driving axles.Working speed of 6.5 mph 10.5
km/h. Travel speed of 10.0 mph 16 km/h. Sealed wet disc parking brakes with automatic
engagement when operator restraint bar is raised
Performance without rear counterweights
Operating load (ISO 5998) 1,550 lb.
Tipping load (ISO 8313) 3,100 lb.
Bucket breakout force (ISO 8313) with short lip bucket 3,950 lb.
Bucket breakout force (ISO 8313) with long lip bucket 3,349 lb.
Max. hydraulic lift capacity (ISO 8313) 4,796 lb.
Proportional Pressure Control (PPC) joystick levers. The left hand joystick controls the ground
drive, the right joystick controls the loader equipment. The PPC foot pedal controls the
auxiliary hydraulic circuit for attachments.
Komatsu Model 4D88E-1FD. Direct combustion 4 cylinder in line diesel engine. Bore x
stroke 3.47 x 3.54 in Power rated (SAE J1349) @ 2800 rpm 47 HP (80/1269/EC) @ 2800
rpm 46 HP Max. torque @ 1800 rpm 142 Nm 105 ft. lb. Water cooling system. Dry type air
filter with safety element. Electric start motor with pre-heating air system for cold weather 3°
F (-16° C)
Transmission
Hydrostatic with 2 x variable displacement pumps with 2 stage and APC system. 2 x axial
pistons motors with two speeds.Final transmission with heavy duty type roller chains
immersed in oil bath connected to the four driving axles.Working speed of 6.5 mph 10.5
km/h. Travel speed of 10.0 mph 16 km/h. Sealed wet disc parking brakes with automatic
engagement when operator restraint bar is raised
Performance without rear counterweights
Operating load (ISO 5998) 1,550 lb.
Tipping load (ISO 8313) 3,100 lb.
Bucket breakout force (ISO 8313) with short lip bucket 3,950 lb.
Bucket breakout force (ISO 8313) with long lip bucket 3,349 lb.
Max. hydraulic lift capacity (ISO 8313) 4,796 lb.
Proportional Pressure Control (PPC) joystick levers. The left hand joystick controls the ground
drive, the right joystick controls the loader equipment. The PPC foot pedal controls the
auxiliary hydraulic circuit for attachments.

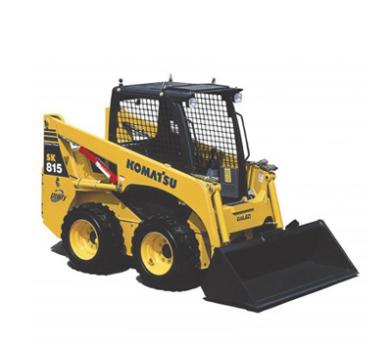

| Komatsu SK815-5 |
| Available Accessories |

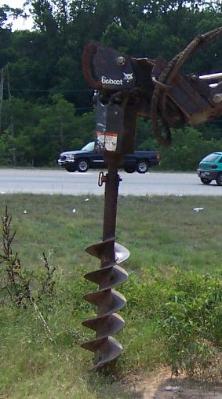

| Auger |

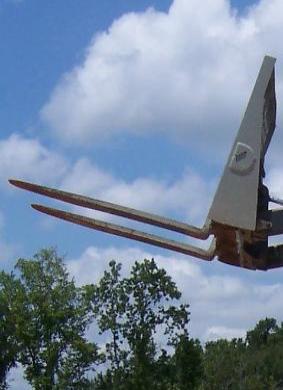

| Forks |
| Available Accessories |
| Available Accessories |

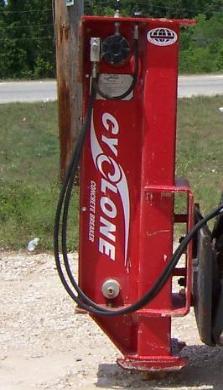

| Concrete Breaker |
| Available at Hilltop Tool Rental |
Engine
4 cylinder, 4 cycle diesel engine. Displacement 203 in³ 3.4 ltr, direct injection, turbocharged
(SAE J1349) @ 2500 rpm 84 HP 62.6 kw Max. torque @ 1600 rpm 211 ft. lb. 286 Nm
Water cooling system. Dry type air fildter with dual element Electric motor with pre-heating
air system for cold weather -16° C (3.2° F)
Transmission
Hydrostatic with 2 x variable displacement pump, 2 x axial piston motors.
Travel speed in low 4.5 mph 7.25 km/h, high 7.5 mph 12.0 km/h.
Sealed wet-disc parking brakes with automatic engagement when operator exits the cab.
Performance without rear counterweights
Operating load @ 35% 2,755 lb 1250 kg
Operating load @ 50% 3,935 lb 1785 kg
Tipping load without counterweights (ISO 8313) 7,870 lb 3570 kg
.
4 cylinder, 4 cycle diesel engine. Displacement 203 in³ 3.4 ltr, direct injection, turbocharged
(SAE J1349) @ 2500 rpm 84 HP 62.6 kw Max. torque @ 1600 rpm 211 ft. lb. 286 Nm
Water cooling system. Dry type air fildter with dual element Electric motor with pre-heating
air system for cold weather -16° C (3.2° F)
Transmission
Hydrostatic with 2 x variable displacement pump, 2 x axial piston motors.
Travel speed in low 4.5 mph 7.25 km/h, high 7.5 mph 12.0 km/h.
Sealed wet-disc parking brakes with automatic engagement when operator exits the cab.
Performance without rear counterweights
Operating load @ 35% 2,755 lb 1250 kg
Operating load @ 50% 3,935 lb 1785 kg
Tipping load without counterweights (ISO 8313) 7,870 lb 3570 kg
.
| Komatsu CK32 $325.00 / Day |
