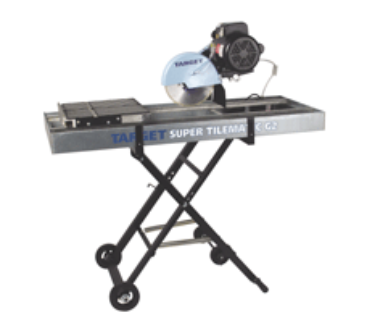

Tile Saws
MOTOR
Engine Manufacturer Baldor
Max. Horsepower 1 1/2 HP
Rated Horsepower 1 1/2 HP
Voltage 115V
Phases Single
Cycles 60/1 Hz
Full Load 14.4A
Starting 79@115VA
TRANSMISSION
Weight, Crated 53 kg / 116 lbs
Weight, Uncrated 48 kg / 105 lbs
BLADE DATA
Blade Guard Capacity 254 mm/10 in.
Blade Shaft RPM 2760
Max Depth of Cut 95 mm / 3 - 3/4 inch
Arbor Size 16 mm/5/8 in.
Engine Manufacturer Baldor
Max. Horsepower 1 1/2 HP
Rated Horsepower 1 1/2 HP
Voltage 115V
Phases Single
Cycles 60/1 Hz
Full Load 14.4A
Starting 79@115VA
TRANSMISSION
Weight, Crated 53 kg / 116 lbs
Weight, Uncrated 48 kg / 105 lbs
BLADE DATA
Blade Guard Capacity 254 mm/10 in.
Blade Shaft RPM 2760
Max Depth of Cut 95 mm / 3 - 3/4 inch
Arbor Size 16 mm/5/8 in.
Engine/Motor
Engine Manufacturer Baldor
Max. Horsepower 1 1/2 HP
Rated Horsepower 1 1/2 HP
Voltage 115 V
Phases 1
Cycles 60 Hz
Full Load 14.4A
Starting 80 A
Motor RPM 2760
Blade Data
Blade Guard Capacity 254 mm/10 in.
Blade Shaft RPM 2760
Max Depth of Cut 95 mm/3 3/4 in.
Arbor Size 16 mm/5/8 in.
Cutting Table Data
Cutting Head Cast Aluminum
Cutting Table Cart of cast aluminum rides on
extended rails for longer cuts and two
intermediate supports for stability and
consistent tracking; vulcanized top with
aluminum rip guide
Features Galvanized Water Pan
Engine Manufacturer Baldor
Max. Horsepower 1 1/2 HP
Rated Horsepower 1 1/2 HP
Voltage 115 V
Phases 1
Cycles 60 Hz
Full Load 14.4A
Starting 80 A
Motor RPM 2760
Blade Data
Blade Guard Capacity 254 mm/10 in.
Blade Shaft RPM 2760
Max Depth of Cut 95 mm/3 3/4 in.
Arbor Size 16 mm/5/8 in.
Cutting Table Data
Cutting Head Cast Aluminum
Cutting Table Cart of cast aluminum rides on
extended rails for longer cuts and two
intermediate supports for stability and
consistent tracking; vulcanized top with
aluminum rip guide
Features Galvanized Water Pan
