Welder / Generators
DC Arc Welder
Rated Voltage
Rated Current
Duty Cycle
Current Range
Rated Speed
Generator
Max. Output
Rated Output
Rated Voltage
Rated Current
Frequency
Diesel Engine
Model
Output
Piston Displacement
Fuel Tank Capacity
Rated Voltage
Rated Current
Duty Cycle
Current Range
Rated Speed
Generator
Max. Output
Rated Output
Rated Voltage
Rated Current
Frequency
Diesel Engine
Model
Output
Piston Displacement
Fuel Tank Capacity
31.2 (25.0)V 280 (280) A 50 (100) % 35 ~300 A 3600 rpm 10.5 kW 10.0 kW 120 / 240 V 41.7X2 / 41.7 A 60 Hz Kubota D722-B 18.8 hp / 3600 rpm 719 cc 9.5 g |
| Available at Hilltop Tool Rental |
 |  |  |  |  |  |

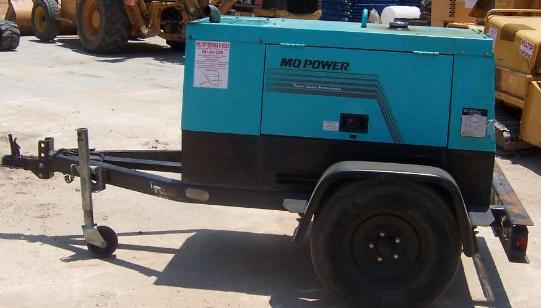

Multiquip Model BLW-400SS
Performance Data
Prime Output KW (KVA): 14 KW
Sound Level dB(A) - full load 23 feet: 67.5
Rated Voltage: 34V Single, 27V Double
Current Range: 70-400 Amps (Single), 35-200 Amps (Double)
Duty Cycle: 100% @ 350 Amps
Maximum Output - Amps: 400 Amps (Single), 200 Amps (Double)
Continous Amps: 116/58
Frequency / Phase: 60 Hz Single Phase
One man operator 400 amps or 2 man at 200 amps each
Power Source
Displacement cu. in (cc): 1189 cc
Fuel Consumption - full load - gph (lph): 1.6 gph
Engine Coolant Capacity - gal (liters): 1.6 gal
Fuel Tank Capacity - gal (liters): 10.5 gal
Engine Design: 4-cycle, water cooled, direct injection
Engine Model: V1205
Engine HP; rpm: 31 HP, 3600 RPM
Oil Capacity - gal (liters): 1.3 Gal
Engine Make: Kubota
Starting System: Electric
No. Cylinders: 4
Voltage/Phase: 120/240 V
Rated Output: 116/58 amps
Performance Data
Prime Output KW (KVA): 14 KW
Sound Level dB(A) - full load 23 feet: 67.5
Rated Voltage: 34V Single, 27V Double
Current Range: 70-400 Amps (Single), 35-200 Amps (Double)
Duty Cycle: 100% @ 350 Amps
Maximum Output - Amps: 400 Amps (Single), 200 Amps (Double)
Continous Amps: 116/58
Frequency / Phase: 60 Hz Single Phase
One man operator 400 amps or 2 man at 200 amps each
Power Source
Displacement cu. in (cc): 1189 cc
Fuel Consumption - full load - gph (lph): 1.6 gph
Engine Coolant Capacity - gal (liters): 1.6 gal
Fuel Tank Capacity - gal (liters): 10.5 gal
Engine Design: 4-cycle, water cooled, direct injection
Engine Model: V1205
Engine HP; rpm: 31 HP, 3600 RPM
Oil Capacity - gal (liters): 1.3 Gal
Engine Make: Kubota
Starting System: Electric
No. Cylinders: 4
Voltage/Phase: 120/240 V
Rated Output: 116/58 amps
MMD NGW-190H
Voltage 120/240V
Max. Output -3,800W Rated Output -3,300W
Max. Amps -31.7 amps Rated Amps -27.5 amps
WELDER
DC Output 55V, 50-180 Amps
AC OUTLETS
120V, 20A GFCI Duplex - 1
120V, 30A Twist Locks - 1
120/240V, 30A Twist Locks - 1
ENGINE
Manufacturer Honda Model OHV GX-390
Horsepower 13 hp Start System Recoil
Auto Idle - Yes Tank 4.5 gal
Run Time 5.2 hrs Sound Level 75 dB
Voltage 120/240V
Max. Output -3,800W Rated Output -3,300W
Max. Amps -31.7 amps Rated Amps -27.5 amps
WELDER
DC Output 55V, 50-180 Amps
AC OUTLETS
120V, 20A GFCI Duplex - 1
120V, 30A Twist Locks - 1
120/240V, 30A Twist Locks - 1
ENGINE
Manufacturer Honda Model OHV GX-390
Horsepower 13 hp Start System Recoil
Auto Idle - Yes Tank 4.5 gal
Run Time 5.2 hrs Sound Level 75 dB
