Generators for rent
Makita G610R
AC voltage 120V/240V-60HZ
Maximum output current 5800W-48.3A/24.2A
Rated output current 4800W-40A/20A
DC voltage 12V-8.3A
Engine
Model EH34D
Maximum H.P./RPM 11/3,600
Displacement 338cc.
Fuel tank capacity 5.68 gal.
Continuous operation 7.0 hrs.
Noise level @ rated output, 7M, 60HZ 74dB
Dimensions (L x W x H) 27.2" x 18.9" x
23.2"
Dry weight 172 lbs.
AC voltage 120V/240V-60HZ
Maximum output current 5800W-48.3A/24.2A
Rated output current 4800W-40A/20A
DC voltage 12V-8.3A
Engine
Model EH34D
Maximum H.P./RPM 11/3,600
Displacement 338cc.
Fuel tank capacity 5.68 gal.
Continuous operation 7.0 hrs.
Noise level @ rated output, 7M, 60HZ 74dB
Dimensions (L x W x H) 27.2" x 18.9" x
23.2"
Dry weight 172 lbs.
POWERPRO 25 trailer mounted
Engine Type ISUZU AA-4LE1
Generator Type Taiyo Prime Power Rating
Single Phase 120V 66 amps 60 amps(L1-N,L3-N at load)
Single Phase 240V 66 amps 60 amps
Three Phase 208V 73 amps 67 amps
Three Phase 480V 33 amps 30 amps
GENERATOR SPECIFICATIONS
Voltage - Three Phase 208, 220, 240, 416, 440, 480V - Switchable
Voltage - Single Phase 120, 127, 139, 240, 254, 277V - Switchable
Excitation Brushless with AVR Brushless
Voltage Regulation 0.5% (No Load to Full Load)
Insulation Class F Power Factor 0.8 Frequency 60 hertz
Generator RPM 1,800 rpm
Standby Output 22kW/27.5kVA (Three Phase), 15.8kW/15.8kVA (Single
Phase)
Prime Output 20kW/25kVA (Three Phase), 14.4kW/14.4kVA (Single Phase)
Number of Poles 4
Armature Connection Star with Neutral/Zig Zag
ENGINE SPECIFICATIONS
Engine Design 4-Cycle, 4 Cyl., Water-cooled, Swirl Chamber
Displacement 133 cu in Horsepower 31.5 hp @ rated speed
Fuel Consumption 1.8 gph @ Full Load 1.2 gph @ 75% Load
1.0 gph @ 50% Load
Coolant/Oil Capacity 1.6/2.1 Battery/Starting System 12V DC/Electric
Engine Type ISUZU AA-4LE1
Generator Type Taiyo Prime Power Rating
Single Phase 120V 66 amps 60 amps(L1-N,L3-N at load)
Single Phase 240V 66 amps 60 amps
Three Phase 208V 73 amps 67 amps
Three Phase 480V 33 amps 30 amps
GENERATOR SPECIFICATIONS
Voltage - Three Phase 208, 220, 240, 416, 440, 480V - Switchable
Voltage - Single Phase 120, 127, 139, 240, 254, 277V - Switchable
Excitation Brushless with AVR Brushless
Voltage Regulation 0.5% (No Load to Full Load)
Insulation Class F Power Factor 0.8 Frequency 60 hertz
Generator RPM 1,800 rpm
Standby Output 22kW/27.5kVA (Three Phase), 15.8kW/15.8kVA (Single
Phase)
Prime Output 20kW/25kVA (Three Phase), 14.4kW/14.4kVA (Single Phase)
Number of Poles 4
Armature Connection Star with Neutral/Zig Zag
ENGINE SPECIFICATIONS
Engine Design 4-Cycle, 4 Cyl., Water-cooled, Swirl Chamber
Displacement 133 cu in Horsepower 31.5 hp @ rated speed
Fuel Consumption 1.8 gph @ Full Load 1.2 gph @ 75% Load
1.0 gph @ 50% Load
Coolant/Oil Capacity 1.6/2.1 Battery/Starting System 12V DC/Electric
| MMD 25 |
POWERPRO 45 trailer mounted
Engine Type Nissan 2A-BD30T
Generator Type Taiyo
Standby Power Rating Prime Power Rating
Single Phase 116 amps (L1-N, L3-N at load) Single Phase 120V 108 amps
Single Phase 240V 116 amps Single Phase 240V 108 amps
Three Phase 208V 128 amps Three Phase 208V 119 amps
Three Phase 480V 3 58 amps Three Phase 480V 54 amps
GENERATOR SPECIFICATIONS
Voltage - Three Phase 208, 220, 240, 416, 440, 480V - Switchable
Voltage - Single Phase 120, 127, 139, 240, 254, 277V - Switchable
Excitation Brushless with AVR Brushless
Voltage Regulation 0.5% (No Load to Full Load)
Insulation Class F Power Factor 0.8
Frequency 60 hertz Generator RPM 1,800 rpm
Standby Output 38.8kW/48.5kVA (Three Phase), 28kW/28kVA (Single Phase)
Prime Output 36kW/45kVA (Three Phase), 26kW/26kVA (Single Phase)
Number of Poles 4 Armature Connection Star with Neutral/Zig Zag
ENGINE SPECIFICATIONS
Engine Design 4 Cyl., Water-Cooled, Direct Injection Turbocharged
Displacement 180 cu in Bore x Stroke 3.8 x 4.0 in
Horsepower 58.3 hp @ rated speed
Fuel Consumption 2.7 gph @ Full Load 2.0 gph @ 75% Load
1.5 gph @ 50%
Coolant/Oil Capacity 2.9/2.6
Battery/Starting System 12V DC/Electric
Engine Type Nissan 2A-BD30T
Generator Type Taiyo
Standby Power Rating Prime Power Rating
Single Phase 116 amps (L1-N, L3-N at load) Single Phase 120V 108 amps
Single Phase 240V 116 amps Single Phase 240V 108 amps
Three Phase 208V 128 amps Three Phase 208V 119 amps
Three Phase 480V 3 58 amps Three Phase 480V 54 amps
GENERATOR SPECIFICATIONS
Voltage - Three Phase 208, 220, 240, 416, 440, 480V - Switchable
Voltage - Single Phase 120, 127, 139, 240, 254, 277V - Switchable
Excitation Brushless with AVR Brushless
Voltage Regulation 0.5% (No Load to Full Load)
Insulation Class F Power Factor 0.8
Frequency 60 hertz Generator RPM 1,800 rpm
Standby Output 38.8kW/48.5kVA (Three Phase), 28kW/28kVA (Single Phase)
Prime Output 36kW/45kVA (Three Phase), 26kW/26kVA (Single Phase)
Number of Poles 4 Armature Connection Star with Neutral/Zig Zag
ENGINE SPECIFICATIONS
Engine Design 4 Cyl., Water-Cooled, Direct Injection Turbocharged
Displacement 180 cu in Bore x Stroke 3.8 x 4.0 in
Horsepower 58.3 hp @ rated speed
Fuel Consumption 2.7 gph @ Full Load 2.0 gph @ 75% Load
1.5 gph @ 50%
Coolant/Oil Capacity 2.9/2.6
Battery/Starting System 12V DC/Electric
| MMD 45 |

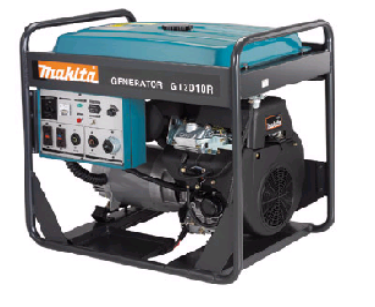

Makita G12010R with Electric Start
Durability - High Output Capacity for Demanding Situations
Feature OSHA approved receptables
Commercial-duty steel gas tank
All ball bearing supported, forged steel crankshaft
Cast-in-place cylinder liner made from high carbon steel
Water resistant louvers (IP235 rating) to protect the electrical components
Bubber feet/mounts to reduce vibration
8+ hours of operation from a full fuel tank
Electronic voltage regulator for more accurate voltage ouput
Fuel gauge for easy monitoring
GFCI safety receptable & USDA approved spark arresting muffler
Dual voltage - 120V/240V output
Electric starter with automatic choke
Automatic idle control reduces engine to low RPM operation during no load
draws, reducing fuel consumption & engine wear
INCLUDES: ENGINE:
Tool kit (227-90301-10) Model EH65D
2 ea. Ignition key (066-00099-90) Max. HP/RPM 22.0/3,600
Displacement (cc.) 653
Generator Fuel Capacity (gal.) 11.4
Max. Output Current 12,000W/100A Continuous Operation (hrs.) 8.2
Rated Output Current 9,500W/83.3A Noise level (db) @ rated output, 7M,
Volts AC (60Hz) 120/240 60Hz 77
Volts DC (AMPS) 12 (8.3) Receptacles A,B,C,D (L14-20R)
Durability - High Output Capacity for Demanding Situations
Feature OSHA approved receptables
Commercial-duty steel gas tank
All ball bearing supported, forged steel crankshaft
Cast-in-place cylinder liner made from high carbon steel
Water resistant louvers (IP235 rating) to protect the electrical components
Bubber feet/mounts to reduce vibration
8+ hours of operation from a full fuel tank
Electronic voltage regulator for more accurate voltage ouput
Fuel gauge for easy monitoring
GFCI safety receptable & USDA approved spark arresting muffler
Dual voltage - 120V/240V output
Electric starter with automatic choke
Automatic idle control reduces engine to low RPM operation during no load
draws, reducing fuel consumption & engine wear
INCLUDES: ENGINE:
Tool kit (227-90301-10) Model EH65D
2 ea. Ignition key (066-00099-90) Max. HP/RPM 22.0/3,600
Displacement (cc.) 653
Generator Fuel Capacity (gal.) 11.4
Max. Output Current 12,000W/100A Continuous Operation (hrs.) 8.2
Rated Output Current 9,500W/83.3A Noise level (db) @ rated output, 7M,
Volts AC (60Hz) 120/240 60Hz 77
Volts DC (AMPS) 12 (8.3) Receptacles A,B,C,D (L14-20R)

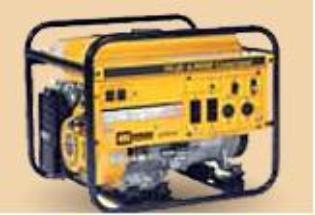

NGK-7000H
Voltage 120V
Max. Output -7,000W Rated Output -6,000W
Max. Amps -58.3 amps Rated Amps -50 amps
AC OUTLETS
120V, 20A GFCI Duplex - 2
120V, 30A Twist Locks - 2
120V, 30A Twist Locks - 1
ENGINE
Manufacturer Honda Model OHV GX-390
Horsepower 13 hp Start System Recoil
Auto Idle - Yes Tank 4.5 gal
Run Time 5.2 hrs Sound Level 75 dB
Voltage 120V
Max. Output -7,000W Rated Output -6,000W
Max. Amps -58.3 amps Rated Amps -50 amps
AC OUTLETS
120V, 20A GFCI Duplex - 2
120V, 30A Twist Locks - 2
120V, 30A Twist Locks - 1
ENGINE
Manufacturer Honda Model OHV GX-390
Horsepower 13 hp Start System Recoil
Auto Idle - Yes Tank 4.5 gal
Run Time 5.2 hrs Sound Level 75 dB
MMD NGK-7000H
Voltage 120V
Max. Output -7,000W Rated Output -6,000W
Max. Amps -58.3 amps Rated Amps -50 amps
AC OUTLETS
120V, 20A GFCI Duplex - 2
120V, 30A Twist Locks - 2
120V, 30A Twist Locks - 1
ENGINE
Manufacturer Honda Model OHV GX-390
Horsepower 13 hp Start System Recoil
Auto Idle - Yes Tank 4.5 gal
Run Time 5.2 hrs Sound Level 75 dB
Voltage 120V
Max. Output -7,000W Rated Output -6,000W
Max. Amps -58.3 amps Rated Amps -50 amps
AC OUTLETS
120V, 20A GFCI Duplex - 2
120V, 30A Twist Locks - 2
120V, 30A Twist Locks - 1
ENGINE
Manufacturer Honda Model OHV GX-390
Horsepower 13 hp Start System Recoil
Auto Idle - Yes Tank 4.5 gal
Run Time 5.2 hrs Sound Level 75 dB
| Available at Hilltop Tool Rental |
