Wacker RD25 2 1/2 ton Roller
Dry Weight 5,115 lb
Drum diameter 29.5 in, Drum width 43 in
Overall size l x w x h 102.5 x 47 x 113.5 in
Curb clearance (R/L) 22.4 in, Side clearance (R/L) 1.9/1.9 in
Water tank capacity 42 US gal
Engine Type air-cooled, 4-stroke, Hatz diesel, 2 M 41
Displacement 104.7 in3
Max. power output according to DIN-ISO 3046 35.3 hp at 3,000 rpm
Rated power output according to DIN-ISO 3046 33 hp at 2,650 rpm
Fuel consumption 1.8 US gal/h, Fuel tank capacity 12.7 US gal
Electrical system 12 V, Number of vibrating drums 2/1
Dynamic (centrifugal) force per drum 5,850 lb
Frequency 3,200 Hz, Fuel tank capacity 12.7 US gal
Dynamic linear force per drum (max.) 135 lb/in
Compaction depth (depending on soil) 18 in
Compaction depth asphalt 6 in
Forward/reverse speed (Infinitely variable) 0-5 mph
Forward/reverse speed (Infinitely variable)_ 0-440 ft/min
Maximum gradeability 30 %
Outside turning radius 13 ft
Max. area capacity 95,260 ft2/h
Dry Weight 5,115 lb
Drum diameter 29.5 in, Drum width 43 in
Overall size l x w x h 102.5 x 47 x 113.5 in
Curb clearance (R/L) 22.4 in, Side clearance (R/L) 1.9/1.9 in
Water tank capacity 42 US gal
Engine Type air-cooled, 4-stroke, Hatz diesel, 2 M 41
Displacement 104.7 in3
Max. power output according to DIN-ISO 3046 35.3 hp at 3,000 rpm
Rated power output according to DIN-ISO 3046 33 hp at 2,650 rpm
Fuel consumption 1.8 US gal/h, Fuel tank capacity 12.7 US gal
Electrical system 12 V, Number of vibrating drums 2/1
Dynamic (centrifugal) force per drum 5,850 lb
Frequency 3,200 Hz, Fuel tank capacity 12.7 US gal
Dynamic linear force per drum (max.) 135 lb/in
Compaction depth (depending on soil) 18 in
Compaction depth asphalt 6 in
Forward/reverse speed (Infinitely variable) 0-5 mph
Forward/reverse speed (Infinitely variable)_ 0-440 ft/min
Maximum gradeability 30 %
Outside turning radius 13 ft
Max. area capacity 95,260 ft2/h
 |  |  |  |  |  |
| Rollers |

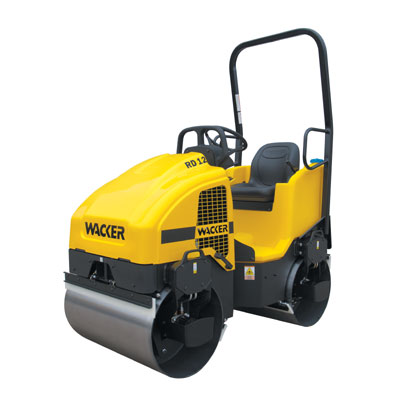

DR 12 A
Hydrostatic Vibratory Roller
Operating weight (includes 175 lb. operator, half-full water tank and half-full fuel
tank) 2,490 lb
Weight w/ballast in rear drum 2,690 lb
Drum diameter 22 in Drum width 35.4 in
Overall size l x w x h 71.8 x 40.8 x 90.6 in
Curb clearance (R/L) 15.7/8.2 in Side clearance (R/L) 1.9/3.5 in
Water tank capacity 26.4 US gal
Engine Type air-cooled, 4-cycle 2-cylinder, Honda gasoline
Starting system Electric Displacement 37.5 in3
Max. power output 18 hp at 3.600 1/min 3,600 rpm
Operating power 15.8 hp at 3.100 1/min 3.100 rpm
Maximum operating power 18 hp (kW) Fuel consumption 1.3 US gal/h
Electrical system 12 V Number of vibrating drums 1
Dynamic (centrifugal) force per drum 3,400 lb
Frequency 70 Hz 4,200 Hz Fuel tank capacity 6.1 US gal
Dynamic linear force, front 96 lb/in
Forward/reverse speed (Infinitely variable) 0-5.4 mph
Forward/reverse speed (Infinitely variable) 0-475 ft/min
Maximum gradeability up to 15 ° up to 15 °
Maximum gradeability 30 % 30 %
Outside turning radius 2,45 m 8.04 ft
Max. area capacity 84,100 ft2/h
Hydrostatic Vibratory Roller
Operating weight (includes 175 lb. operator, half-full water tank and half-full fuel
tank) 2,490 lb
Weight w/ballast in rear drum 2,690 lb
Drum diameter 22 in Drum width 35.4 in
Overall size l x w x h 71.8 x 40.8 x 90.6 in
Curb clearance (R/L) 15.7/8.2 in Side clearance (R/L) 1.9/3.5 in
Water tank capacity 26.4 US gal
Engine Type air-cooled, 4-cycle 2-cylinder, Honda gasoline
Starting system Electric Displacement 37.5 in3
Max. power output 18 hp at 3.600 1/min 3,600 rpm
Operating power 15.8 hp at 3.100 1/min 3.100 rpm
Maximum operating power 18 hp (kW) Fuel consumption 1.3 US gal/h
Electrical system 12 V Number of vibrating drums 1
Dynamic (centrifugal) force per drum 3,400 lb
Frequency 70 Hz 4,200 Hz Fuel tank capacity 6.1 US gal
Dynamic linear force, front 96 lb/in
Forward/reverse speed (Infinitely variable) 0-5.4 mph
Forward/reverse speed (Infinitely variable) 0-475 ft/min
Maximum gradeability up to 15 ° up to 15 °
Maximum gradeability 30 % 30 %
Outside turning radius 2,45 m 8.04 ft
Max. area capacity 84,100 ft2/h
