Target
Engine/Motor
Engine Manufacturer Baldor
Max. Horsepower 5 HP
Engine Coolant air
Voltage 208230V
Cycles 60/AC/1 Hz
Full Load 21.5/20A
Starting 149/139A
Transmission Data
Conveyor Cart Cast aluminium. vulcanized
rubber top. adjustble measureing rule.
45/90deg cutting guide
Water Pump High output submersible. totally
epoxy sealed with builtin thermal overload
protection
Weight, Crated 162 kg/361 lbs
Weight, Uncrated 149 kg/333 lbs
Blade Data
Blade Guard Capacity 508 mm/20 in.
Blade Shaft RPM 2317
Max Depth of Cut 203.2 mm/8 in.
Arbor Size 25.4 mm/1 in.
Blade Guard Attachment One-piece steel
Engine Manufacturer Baldor
Max. Horsepower 5 HP
Engine Coolant air
Voltage 208230V
Cycles 60/AC/1 Hz
Full Load 21.5/20A
Starting 149/139A
Transmission Data
Conveyor Cart Cast aluminium. vulcanized
rubber top. adjustble measureing rule.
45/90deg cutting guide
Water Pump High output submersible. totally
epoxy sealed with builtin thermal overload
protection
Weight, Crated 162 kg/361 lbs
Weight, Uncrated 149 kg/333 lbs
Blade Data
Blade Guard Capacity 508 mm/20 in.
Blade Shaft RPM 2317
Max Depth of Cut 203.2 mm/8 in.
Arbor Size 25.4 mm/1 in.
Blade Guard Attachment One-piece steel
| Guardmatic GM2051 $3,895 With Stand and Blade |
| Available at Hilltop Tool Rental |

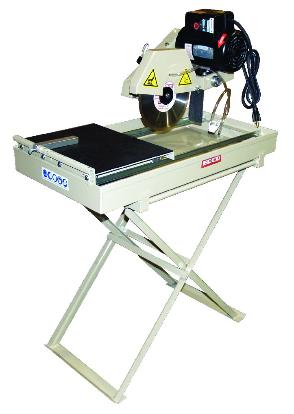

Edco TMS-10
10", 1 HP Electric Tile Saw
Cuts up to 12" tiles diagonally or 20" tiles
lengthwise; 2-position tray makes it easy to cut large
or small tile
Vertical and horizontal shielded bearings provide
smoother rolling table for cleaner cuts
Heavy-duty, screw-type depth control provides easy
blade adjustment and prevents cutting into roller table
Positive-drive timing belt pulley system delivers
maximum power to the blade with minimum vibration
Rolling table is locked to guide rails so it can not be
misplaced or forgotten and is oversized to
comfortably support larger tiles
Adjustable water flow, electric water pump and 10"
continuous rim blade are included Ideal For:
Professional tile contractors, tile installers, floor
covering suppliers, tile manufacturers and rental
stores
Specifications:
Model: TMS-10
Powe Electric H.P. 1 HP 115 V
Phase Single Amps 13.4
RPM's 2330 Belts Timing Belt
Length 35" Width 22"
Height 51" on Stand Weight 111 lbs.
10", 1 HP Electric Tile Saw
Cuts up to 12" tiles diagonally or 20" tiles
lengthwise; 2-position tray makes it easy to cut large
or small tile
Vertical and horizontal shielded bearings provide
smoother rolling table for cleaner cuts
Heavy-duty, screw-type depth control provides easy
blade adjustment and prevents cutting into roller table
Positive-drive timing belt pulley system delivers
maximum power to the blade with minimum vibration
Rolling table is locked to guide rails so it can not be
misplaced or forgotten and is oversized to
comfortably support larger tiles
Adjustable water flow, electric water pump and 10"
continuous rim blade are included Ideal For:
Professional tile contractors, tile installers, floor
covering suppliers, tile manufacturers and rental
stores
Specifications:
Model: TMS-10
Powe Electric H.P. 1 HP 115 V
Phase Single Amps 13.4
RPM's 2330 Belts Timing Belt
Length 35" Width 22"
Height 51" on Stand Weight 111 lbs.
| Edco TMS-10 $1,295.00 |
Edco SK14-13H
•8" Wheels provide smoother cutting action with less
vibration
•Lifting bail assists with easy loading and unloading
•More stable frame with wider wheel base
•Rear wheel shaft mounted end to end for greater
frame rigidity
•More weight located over blade for faster cutting
•Heavy duty steel core wheels for years of service
•Heavy duty frame and undercarriage are 7-gauge steel
to eliminate frame vibration and bending
•Precision machined 1" arbor
•Compact size for easy loading and unloading
•Down-cut blade rotation
•3 belt drive delivers more power to blade shaft
•8" Wheels provide smoother cutting action with less
vibration
•Lifting bail assists with easy loading and unloading
•More stable frame with wider wheel base
•Rear wheel shaft mounted end to end for greater
frame rigidity
•More weight located over blade for faster cutting
•Heavy duty steel core wheels for years of service
•Heavy duty frame and undercarriage are 7-gauge steel
to eliminate frame vibration and bending
•Precision machined 1" arbor
•Compact size for easy loading and unloading
•Down-cut blade rotation
•3 belt drive delivers more power to blade shaft
| $1,895.00 |
Edco 14" Masonry Saw
•Rolling table will accomodate 16" blocks
•Portable model with 14” blade capacity
•Rounded blade guard with splash proof protection
•Universal cutting table with water drain holes and centered
wood block eliminates cutting through tables
•Side-Mounted handles for balanced lifting load
•Vacuum hookup optional for dust-free cutting
•1/4" steel arbor wrench with saw-mounted wrench holder
•Adjustable cutting head can be used manually or locked in
a fixed position
•Quick adjusting heavy-duty bearing assemblies for easy
blade alignment
•Choose between optional folding upright stand or
expandable ProCart for convenient working height
Specifications:
Model: BB-14-1.5B, Electric, 1.5 HP, 115/230 V, Single
phase, 18.8/9.4 amps, 3450 rpm, Std. "V" Belts, 43"x 25"
x 32", 165 lbs. with blade
$1895.00
Model: BB-14-5.5H Gasoline, 5.5 HP, 3600 rpm, "V-Rib"
Belts, 43"x 25"x 37", 175 lbs. with blade and stand
$2495.00
•Rolling table will accomodate 16" blocks
•Portable model with 14” blade capacity
•Rounded blade guard with splash proof protection
•Universal cutting table with water drain holes and centered
wood block eliminates cutting through tables
•Side-Mounted handles for balanced lifting load
•Vacuum hookup optional for dust-free cutting
•1/4" steel arbor wrench with saw-mounted wrench holder
•Adjustable cutting head can be used manually or locked in
a fixed position
•Quick adjusting heavy-duty bearing assemblies for easy
blade alignment
•Choose between optional folding upright stand or
expandable ProCart for convenient working height
Specifications:
Model: BB-14-1.5B, Electric, 1.5 HP, 115/230 V, Single
phase, 18.8/9.4 amps, 3450 rpm, Std. "V" Belts, 43"x 25"
x 32", 165 lbs. with blade
$1895.00
Model: BB-14-5.5H Gasoline, 5.5 HP, 3600 rpm, "V-Rib"
Belts, 43"x 25"x 37", 175 lbs. with blade and stand
$2495.00
