Diamond Coring
FEATURES
  •  Comes with 4096 Diamond Coring
    Motor
  •  Cast aluminum base with four leveling
    screws for fast accurate leveling
    adjustment
  •  Durable precision-ground 2-1/2 in. steel
    column, 43-1/2 in. high.
  •  Rear mounted rack and pinion feed.

SPECIFICATIONS
  • Height  43-1/2 in.
  • Angle Drilling  No
  • Wheels  Yes
  • Vac Base  Yes
  • Vac Pump  Yes
  • Motor  Yes
  • Meter Box  Yes
  • Tool Weight  111.5 lbs.
  • Shipping Weight  139.8 lbs.

INCLUDES
  •  Diamond Coring Motor
  •  Small Base Stand
  •  Meter Box Assembly
  •  Vacuum Pad Assembly
  •  Vacuum Pump Assembly

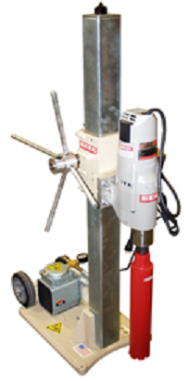

Milwaukee Electric Diamond Coring Rig
$2295.00
Available at
Hilltop Tool Rental
FEATURES
  • Extra heavy walled 31/2” square tube
    column, largest in the industry
  • Brass wear strips and easy carriage
    adjustment allows precision tolerance drilling
  • 12” diameter drill bit capacity standard;
    expandable in 2” increments with optional
    motor spacer blocks.
  • Choice of 15 and 20 amp Milwaukee motors
  • Standard with combination vacuum anchor
    base
  • Premium large diameter wheels
  • Electric circuitry incorporated into
    conveniently located ammetercontrol center

SPECIFICATIONS
  • Power 20 AMP Milwaukee Motor
  • Leveling System Four ½” – 13 Bolts
  • Anchor Slot Removable Plug
  • Raise/Lower Rack & Pinion w/Spoked
    Handwheel
  • Width 14"
  • Height 4'
  • Base Length 19-1/4"
  • Overall Length 30"
  • Weight 165 lbs.
Edco Diamond Coring Rig
$2595.00
Most Powerful Hand Held Core Drills in the Industry

•Plugs into regular 15-20 AMP household outlet
•Soft Start Motor
•Lightweight, Compact, Easy to Use
•Capable of WET or DRY drilling
•3 1/4" Garden Hose hook-up adapter for wet drilling
•Compatible with standard core bits
•One Year Limited Warranty on motor

Equipped with the CARDI Smart Protection System

•Soft Start Motor - ensures smooth and safe start
•Mechanical Clutch - protects operator when jamming
•Electronic Clutch - protects motor and operator in case of
overload
Edco Hand-Held Core Drill
$1295.00
with carry case
