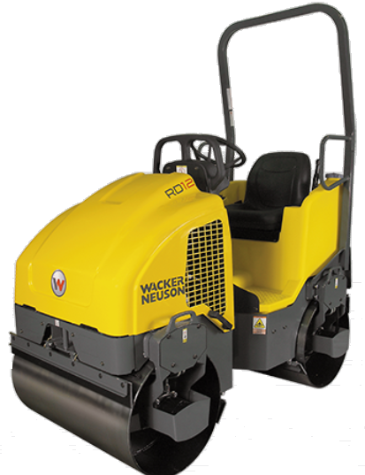

DR 12 A
Hydrostatic Vibratory Roller
Operating weight (includes 175 lb. operator, half-full water tank and half-full fuel
tank) 2,490 lb
Weight w/ballast in rear drum 2,690 lb
Drum diameter 22 in Drum width 35.4 in
Overall size l x w x h 71.8 x 40.8 x 90.6 in
Curb clearance (R/L) 15.7/8.2 in Side clearance (R/L) 1.9/3.5 in
Water tank capacity 26.4 US gal
Engine Type air-cooled, 4-cycle 2-cylinder, Honda gasoline
Starting system Electric Displacement 37.5 in3
Max. power output 18 hp at 3.600 1/min 3,600 rpm
Operating power 15.8 hp at 3.100 1/min 3.100 rpm
Maximum operating power 18 hp (kW) Fuel consumption 1.3 US gal/h
Electrical system 12 V Number of vibrating drums 1
Dynamic (centrifugal) force per drum 3,400 lb
Frequency 70 Hz 4,200 Hz Fuel tank capacity 6.1 US gal
Dynamic linear force, front 96 lb/in
Forward/reverse speed (Infinitely variable) 0-5.4 mph
Forward/reverse speed (Infinitely variable) 0-475 ft/min
Maximum gradeability up to 15 ° up to 15 °
Maximum gradeability 30 % 30 %
Outside turning radius 2,45 m 8.04 ft
Max. area capacity 84,100 ft2/h
Hydrostatic Vibratory Roller
Operating weight (includes 175 lb. operator, half-full water tank and half-full fuel
tank) 2,490 lb
Weight w/ballast in rear drum 2,690 lb
Drum diameter 22 in Drum width 35.4 in
Overall size l x w x h 71.8 x 40.8 x 90.6 in
Curb clearance (R/L) 15.7/8.2 in Side clearance (R/L) 1.9/3.5 in
Water tank capacity 26.4 US gal
Engine Type air-cooled, 4-cycle 2-cylinder, Honda gasoline
Starting system Electric Displacement 37.5 in3
Max. power output 18 hp at 3.600 1/min 3,600 rpm
Operating power 15.8 hp at 3.100 1/min 3.100 rpm
Maximum operating power 18 hp (kW) Fuel consumption 1.3 US gal/h
Electrical system 12 V Number of vibrating drums 1
Dynamic (centrifugal) force per drum 3,400 lb
Frequency 70 Hz 4,200 Hz Fuel tank capacity 6.1 US gal
Dynamic linear force, front 96 lb/in
Forward/reverse speed (Infinitely variable) 0-5.4 mph
Forward/reverse speed (Infinitely variable) 0-475 ft/min
Maximum gradeability up to 15 ° up to 15 °
Maximum gradeability 30 % 30 %
Outside turning radius 2,45 m 8.04 ft
Max. area capacity 84,100 ft2/h
DR 27 120
Hydrostatic Vibratory Roller
Operating weight (includes 175 lb. operator, half-full water tank and half-full fuel tank)
6,063 lb
Drum diameter 27.6 in Drum width 47.2 in
Overall size l x w x h 95.6 x 51.2 x 109.3 in
Curb clearance (R/L) 20 in Side clearance (R/L) 2/2 in
Water tank capacity 39.6 US gal
Engine Type Liquid cooled, 3-cylinder, 4-stroke, Perkins diesel, 403-15
Displacement 91.5 in3
Max. power output a 33.7 hp at 2.800 1/min 2,800 rpm
Rated power output 31.25 / 33.7 hp at 2.450 / 3.000 1/min 2,450 / 3,000 rpm
Fuel consumption 1.9 / 2.0 US gal/h Fuel tank capacity 12.3 US gal
Electrical system 12 V Number of vibrating drums 2/1
Dynamic (centrifugal) force per drum 6,474 / 9,307 lb
Frequency 55/66 Hz 3,300 / 3,960 Hz at 2.450 / 3.000 1/min 2,450 / 3,000 rpm
Forward/reverse speed (Infinitely variable) 0-5 / 0-6.2 mph
Forward/reverse speed (Infinitely variable) 0-440 / 0-546 ft/min
Dynamic linear force per drum (max.) 137 / 197 lb/in
Compaction depth asphalt 6 in Maximum gradeability 35 %
Outside turning radius 11.8 ft Max. area capacity 103,900 / 129,000 ft2/h
Specifications may change due to continuous product development.
Hydrostatic Vibratory Roller
Operating weight (includes 175 lb. operator, half-full water tank and half-full fuel tank)
6,063 lb
Drum diameter 27.6 in Drum width 47.2 in
Overall size l x w x h 95.6 x 51.2 x 109.3 in
Curb clearance (R/L) 20 in Side clearance (R/L) 2/2 in
Water tank capacity 39.6 US gal
Engine Type Liquid cooled, 3-cylinder, 4-stroke, Perkins diesel, 403-15
Displacement 91.5 in3
Max. power output a 33.7 hp at 2.800 1/min 2,800 rpm
Rated power output 31.25 / 33.7 hp at 2.450 / 3.000 1/min 2,450 / 3,000 rpm
Fuel consumption 1.9 / 2.0 US gal/h Fuel tank capacity 12.3 US gal
Electrical system 12 V Number of vibrating drums 2/1
Dynamic (centrifugal) force per drum 6,474 / 9,307 lb
Frequency 55/66 Hz 3,300 / 3,960 Hz at 2.450 / 3.000 1/min 2,450 / 3,000 rpm
Forward/reverse speed (Infinitely variable) 0-5 / 0-6.2 mph
Forward/reverse speed (Infinitely variable) 0-440 / 0-546 ft/min
Dynamic linear force per drum (max.) 137 / 197 lb/in
Compaction depth asphalt 6 in Maximum gradeability 35 %
Outside turning radius 11.8 ft Max. area capacity 103,900 / 129,000 ft2/h
Specifications may change due to continuous product development.
| $13,750.00 |
| $33,750.00 |
| Available at Hilltop Tool Rental |
RT 82-SC
Vibratory Trench Roller
WACKER's articulated trench rollers feature a dual joystick control
box for easy steering. This "Smart Control" (SC) system uses an
infared signal with line-of-sight control for added safety. If the
operator comes within 3.3 feet (1 meter) of the roller's front or rear
sensing eye with the control box, the unit will stop moving and
vibrating. A smart machine for any jobsite.
Operating weight 3,247 lb Drum diameter 520 mm 20.5 in
Drum width 820 mm 32 in Overall size l x w x h 73 x 32 x 48,5 in
Engine Type Lombardini, 3 cylinder liquid-cooled, electric start diesel
Displacement 56 in3
Max. power output according to DIN-ISO 3046 15,21 hp
Operating power according to DIN-ISO 3046 18 hp
Operating speed 2,600 rpm Fuel consumption 1.5 US gal/h
Fuel tank capacity 6.3 US gal Vibration frequency 2,500 vpm
Dynamic (centrifugal) force total 7,700/15,400 lb
Static linear force per drum 54.6 lb/in
Dynamic linear force per drum (max.) 258 lb/in
Lift: soil up to 29.5 in Low Speed 66 ft/min
High Speed - forward only 131 ft/min Compacted area 10,560 ft2/h
Gradeability without vibration 50% Gradeability with vibration 45%
Turning radius - inside 63 in Infrared wireless battery capacity 8 h
Battery recharge time 40
Max. distance for intrared control 14 m 45 ft
$32,750.00
With 22" Drum Kit $34,505.00
Specifications may change due to continuous product development.
Vibratory Trench Roller
WACKER's articulated trench rollers feature a dual joystick control
box for easy steering. This "Smart Control" (SC) system uses an
infared signal with line-of-sight control for added safety. If the
operator comes within 3.3 feet (1 meter) of the roller's front or rear
sensing eye with the control box, the unit will stop moving and
vibrating. A smart machine for any jobsite.
Operating weight 3,247 lb Drum diameter 520 mm 20.5 in
Drum width 820 mm 32 in Overall size l x w x h 73 x 32 x 48,5 in
Engine Type Lombardini, 3 cylinder liquid-cooled, electric start diesel
Displacement 56 in3
Max. power output according to DIN-ISO 3046 15,21 hp
Operating power according to DIN-ISO 3046 18 hp
Operating speed 2,600 rpm Fuel consumption 1.5 US gal/h
Fuel tank capacity 6.3 US gal Vibration frequency 2,500 vpm
Dynamic (centrifugal) force total 7,700/15,400 lb
Static linear force per drum 54.6 lb/in
Dynamic linear force per drum (max.) 258 lb/in
Lift: soil up to 29.5 in Low Speed 66 ft/min
High Speed - forward only 131 ft/min Compacted area 10,560 ft2/h
Gradeability without vibration 50% Gradeability with vibration 45%
Turning radius - inside 63 in Infrared wireless battery capacity 8 h
Battery recharge time 40
Max. distance for intrared control 14 m 45 ft
$32,750.00
With 22" Drum Kit $34,505.00
Specifications may change due to continuous product development.
CRT 48-31V-E Ride-on Trowel
WACKER's easy to operate ride-on power trowels offer accurate and highly productive floating
and finishing for large concrete surfaces and super flat floors. Plus a unique variable clutch
provides proper torque and speed range to match concrete conditions, without mechanical
adjustments.
Description Imperial
Length x width x height 100 x 55 x 52.3 in
Blade size (l x w) finish 18 x 6 in
Operating weight 1,165 lb
Shipping weight (including packaging) 1,335 lb
Shipping size 108 x 60 x 44 in
Troweling width (non-overlapping) 97 in
Troweling width (overlapping) 99 in
Troweling area (nonoverlapping) 32 ft2
Troweling area (overlapping) 34 ft2
Maximum rotor speed 25-150 rpm
Pitch range 0-25°
Engine Type Vanguard liquid- cooled, 4-cycle, three cylinder, gasoline engine with electric start
Operating speed 4,000 rpm
Displacement 58 in3
Horsepower 31 hp
Fuel consumption 2.75 US gal/h
Fuel tank capacity 6.5 US gal
Specifications may change due to continuous product development.
WACKER's easy to operate ride-on power trowels offer accurate and highly productive floating
and finishing for large concrete surfaces and super flat floors. Plus a unique variable clutch
provides proper torque and speed range to match concrete conditions, without mechanical
adjustments.
Description Imperial
Length x width x height 100 x 55 x 52.3 in
Blade size (l x w) finish 18 x 6 in
Operating weight 1,165 lb
Shipping weight (including packaging) 1,335 lb
Shipping size 108 x 60 x 44 in
Troweling width (non-overlapping) 97 in
Troweling width (overlapping) 99 in
Troweling area (nonoverlapping) 32 ft2
Troweling area (overlapping) 34 ft2
Maximum rotor speed 25-150 rpm
Pitch range 0-25°
Engine Type Vanguard liquid- cooled, 4-cycle, three cylinder, gasoline engine with electric start
Operating speed 4,000 rpm
Displacement 58 in3
Horsepower 31 hp
Fuel consumption 2.75 US gal/h
Fuel tank capacity 6.5 US gal
Specifications may change due to continuous product development.
| $11,995.00 Only 11 Available |
|
