Dewaltsaws

DW870 Also
available with
the 3.2HP
for only
$189.00

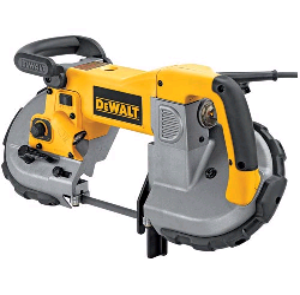

Heavy-Duty Deep Cut Variable Speed
Band Saw Kit MODEL - D28770K

Features

Rubber bumpers protect guards from jobsite abuse
Lightweight and well-balanced design allows for more accurate cuts
Innovative sight light allows the user to see cut line in any jobsite environment
Powerful 6.0 Amp motor designed to withstand jobsite applications
4-3/4” deep cut capacity for round or rectangular stock
Dual bearing blade guide rollers increase durability in the blade support system
Durable and adjustable material guide allows the user to adjust for various jobsite
materials
Large front handle allows for more hand space and control
Ergonomic soft grip back handle provides comfort during use
Externally replacable brushes allow for quick repairs on te jobsite
Speed control knob allows user to tailor the blade speed for various applications
Integrated hang hook allows user to hang the saw without damaging front handle
or castings

Specifications

6.0 Amps 82-280 ' Ft./Min.
4-3/4 " Max Capacity 21.0 " Tool Length \
15.5 lbs Tool Weight

Includes

hex wrench standard 44-7/8"x1/2"x.020" blade
heavy-duty kit box

$289.00

Available at
Hilltop Tool Rental

DW871 - Heavy-Duty 14" (355mm) Chop Saw

Features

Powerful 15.0 Amp/5.3 HP (maximum motor HP) motor provides more overload capacity,
increasing performance and durability
Patented tool-free, 45° adjustable fence allows for fast and accurate angle cuts without using a
wrench
Ergonomically designed "D" handle provides a more comfortable hand position reducing user
fatigue and increasing productivity
Quick-lock vise allows for fast clamping on different size materials to increase productivity
Extra wide solid steel base provides increased stability when cutting longer material.
Heavy-duty lock down pin allows head of the saw to be locked in the carrying position without
the use of a chain
The solid steel base also allows users to weld jigs or stops directly to the base
On-board wheel change wrench allows for convenient storage greatly reducing the risk of lost
wrenches
Heavy-duty compression spring provides smooth movement and greater durability than torsion
springs
The four pre-drilled holes in the base allow easy bolt down to any work bench.
Durable metal top handle allows saw to be carried easily
Spindle lock allows user to make wheel changes quickly and easily saving time and money
Large cutting capacity (5" round / 4-1/2" x 6-1/2" rectangle) provides the ability to cut a wide
variety of materials
Allows users to channel sparks
Easily accessible brushes allow for convenient servicing on the worksite minimizing downtime

Specifications

Amps 15.0 AC/DC Amps No Load Speed 3,800 rpm
Spindle Lock Yes Quick Lock Vise Yes
Wheel Arbor 1" Wheel Diameter 14" "
Max Capacity (Round) 5" " Max Capacity (Rectangular) 4-1/2" x 6-1/2" "
Tool Length 21 " Tool Weight 40.0 lbs
Horsepower 5.3 HP

Includes

14" abrasive wheel wrench

$229.00

DW321 - Compact Jigsaw Kit

Features

Keyless blade clamp for fast, easy blade installation and
removal.
5.5A motor deliver powerful cuts in the hardest materials.
Variable speed delivers 0 - 3,100 strokes per minute for
optimal cutting speed.
4-position orbital action allows for faster, more aggressive cuts
in a variety of materials.
All metal gear case provides superior durability on a
professional site.
Shoe bevels 0 to 45 degrees for beveled cuts.

Specifications

Amps 5.5 Amps Strokes/Min 0-3,100 spm
Stroke Length 1 " Orbital Action 4 position

Includes

1 Blade heavy-duty kit box

$139.00

Cut-Off Saws
D28755                                                $699.00
Specifications
Amps 15                                         No Load Speed 4,300 rpm
Depth of cut 5"                                Horsepower 5.3
Dust collection - Yes                        Wheel Diameter 14"
Motor Abrasion Protection - Yes        Tool Length 23.9"
Tool Weight 24.7 lbs

D28754                                                $599.00
Specifications
Amps 15                                         No Load Speed 5,000 rpm
Depth of cut 4-1/2"                          Horsepower 5.3
Dust collection - No                         Wheel Diameter 12"
Motor Abrasion Protection - Yes        Tool Length 23.9"
Tool Weight 24.7 lbs

DW715 12" Double-Bevel Sliding Compound Miter Saw

Features:
•Precise miter system and machined base fence support deliver increased cutting accuracy
•Adjustable stainless steel miter detent plate with 11 positive stops delivers repeatable
accuracy and worksite durability
•4 hardened steel positive bevel stops at most common angles - 0°, 33.9°, 45° and 48°
•Cam lock miter handle with detent override delivers quick and accurate miter angles
•Single-bevel design allows saw to easily bevel left 0° - 48° and right 0° - 3°
•Tall sliding fences support tall materials and easily slide out of the way for bevel cuts
•Miters 50° left and 50° right for greater versatility
•Powerful 15.0 Amp motor, 4,000 rpm provides extended power and durability
•42 lb weight and built-in carrying handle for increased portability
Specifications:
•Amps: 15.0 Amps
•No Load Speed: 4,000 rpm
•Vertical Capacity: Baseboard at left 45° miter: 6-1/2"
•Vertical Capacity: Crown Molding Vertically Nested: 5-1/4"
•Horizontal Capacity: 2 x 8
•90° Cross-Cut Capacity (dimensional lumber): 2 x 8
•45° Miter Cut Capacity (dimensional lumber): 2 x 6

DSE575 - Heavy-Duty 15amp 7 1/4''
Lightweight Circular saw Kit w/Blade and
Wrench
Features:
Among one of the lightest saws in its class at 8.8 lbs
•15 amp motor, powerful enough for even the toughest applications
•57° beveling capacity with stops at 45° and 22.5°
•2 9/16 " Depth of cut capacity provides additional versatility of
applications
•Anti-snag Ball bearing lower guard provides smooth guard
operation and long life in harsh environments
•Toughcord provides longer durability against cord pull outs
•Integrated dust blower function cleans the line of sight during
cutting
•Durable high grade Aluminum smooth base for accurate cuts
•Clear line of sight aids in blade visibility from any angle
•On-board blade wrench storage allows for easy access to the
wrench
Specifications:
•Amps: 15Amps
•Max Watts Out: 1950W
•No Load Speed: 5200rpm
•Bevel Capacity: 57°
•Bevel Stops 22.5 & 45
•Rear Pivot: No
•Electric Brake: No
•Blade Diameter: 7 1/4"
•Depth of Cut at 90°: 2.55"
•Depth of Cut at 45°: 1.9"
•Tool Weight: 8.8lbs

DW304PK - Heavy-Duty Reciprocating Saw
Kit w/ 4 Position Blade Clamp
Features:
•4-position blade clamp allows for flush cutting and increased
versatility
•Powerful 10.0 Amp motor designed for heavy-duty applications
•Keyless lever-action blade clamp for quick and easy blade changes
•0-2,800 strokes per minute and 1-1/8" stroke length deliver fast
cutting
•Variable speed trigger allows user to instantly control speed from
0 to dialed setting

Specifications:
•Amps: 10Amps
•Strokes/Min: 0-2,800spm
•Stroke Length: 1-1/8"
•Keyless Blade Clamp: Lever
•4 Position Blade Clamp: Yes
•Adjustable Shoe: Fixed
•Variable-Speed Trigger: Yes
•Variable-Speed Dial: No
•Orbital Action: No
•Anti-Slip Comfort Grip: No
•Tool Length: 17.5"
•Tool Weight: 7.0lbs

DW317K - Compact Jig Saw Kit
Features:
•Keyless blade clamp allows for quick blade change without touching
blade or reciprocating shaft
•5.5 Amp motor deliver powerful cuts in the hardest materials
•Variable speed delivers 0 - 3,100 strokes per minute for optimal cutting
speed
•4-position orbital action allows for faster, more aggressive cuts in a
variety of materials
•All-metal gear case provides superior durability on a professional site
•Shoe bevels 0° to 45° for beveled cuts

SPecifications:
•Amps: 5.5Amps
•Strokes/Min: 0-3,100spm
•Stroke Length: 1"
•Keyless Blade Clamp: Yes
•Orbital Action: 4-position
•Tool Weight: 6.2lbs

DW368 7-1/4" (184mm)
Lightweight Circular Saw

Features

•9.5 lb. lightweight tool designed to reduce user fatigue and

increase productivity

•15 Amp, 2,200 MWO motor powerful enough for the toughest
applications
•56° beveling capacity with stops at 45° and 22.5° allows for
aggressive bevel cuts while allowing user to locate common
angles quickly
•Magnesium shoe designed for increased durability
•Clear line of sight aids in blade visibility from any angle
•Lower guard design improves performance when making bevel
cuts and cutting shims

Specifications

Amps 15Amps

Max Watts Out 2,200W

No Load Speed 5,800rpm       Bevel Capacity 56°
Bevel Stops 45° / 22.5°          Rear Pivot N/A
Electric Brake N/A                   Blade Diameter 7-1/4"
Depth of Cut at 90° 2-3/8"      Depth of Cut at 45° 1-3/4"
Tool Weight 9.5lbs

9.00

18 TPI Portable Band Saw
Blade - 44 7/8'', .020''

Matrix II High Speed Steel Edge For Heat Wear
Resistance.
•8% Cobalt Content For Added Durability & Wear.
•Rc 65-67 Tooth Hardness For Increased Wear
Resistance.
•Alloy Steel Backer For Fatigue Resistance.

DW718 12" Double-Bevel Sliding Compound Miter
Saw
$449.00
Features:
•Powerful 15 Amp, 3,600 rpm motor delivers extended power and durability
•Adjustable stainless steel miter detent plate with 10 positive stops improves
productivity and ensures cutting accuracy
•Precise miter system and machined base fence support optimize cutting
accuracy
•Tall sliding fences support crown molding up to 6-5/8" nested and base
molding up to 6-1/2" vertically against the fence while easily sliding out of the
way for bevel cuts
•Innovative gearbox and belt-drive design increases vertical cutting capacity
•Single lever action double bevel design easily bevels left and right 0° - 48°
with positive stops at 0°, 22.5°, 33.9° and 45° in both directions permitting
user to flip the saw and not the material
•Exclusive Back Fence Design cuts up to 2x16 dimensional lumber at 90° and
2x12 at 45°
•Miters 60° to the left and 50° to the right provides increased capacity
•Dual horizontal steel rails with innovative clamping mechanism and linear ball
bearings deliver an accurate, durable and compact saw
•Cam lock miter handle with detent override deliver quick and accurate miter
angles
•Compact, lightweight design (53 lbs.) allows for easy transport and storage
•Designed for use with the DW7187 DEWALT® adjustable miter saw laser
system which enhances visibility of the cutting path

Blade Diameter 12"
Amps 15Amps
No Load Speed 3,600rpm
Arbor Size 5/8" or 1"
Vertical Capacity: Baseboard Against Fence 6-1/2"
Vertical Capacity: Crown Molding Vertically Nested 6-5/8"
Horizontal Capacity: Baseboard Lying Flat 16"
Horizontal Capacity: Crown Molding Lying Flat 11-1/4"
45° Bevel Cut Capacity (dimensional lumber) 2x14 (2x16 with back fence)
90° Cross-Cut Capacity (dimensional lumber) 2x14 (2x16 with back fence)"
90° Cross-Cut Capacity (Max Width) 16"
45° Miter Cut Capacity (Max Height) 2x12
45° Miter Cut Capacity (Max Width) 2x12
Tool Weight 53lbs
Shipping Weight 57lbs

DSW535 - Heavy-Duty 7 1/4'' Worm Drive
Circular Saw
Features:
13.8 lbs. Lightweight magnesium construction for optimum user
handling, comfort, and strength
•Durable cast magnesium footplate provides a tough and solid
cutting platform
•Extra wide saw hook accepts material up to 2-1/2" wide
•TOUGHCORD™ Cord Protection System provides 4X better cord
jerk protection
•53° Bevel capacity for advanced applications
•Bevel detents at 22.5° and 45° for fast and accurate setting to
common angles
•Dual rip ports to accept available DWS5100 12" Dual Port Rip
Guide
•Top-accessible spindle lock enables easier and faster blade
changing

Specifications:
•Amps: 15Amps
•Max Watts Out: 2000W
•No Load Speed: 4800rpm
•Bevel Capacity: 53°
•Bevel Stops: 22.5° and 45°
•Rear Pivot: No
•Electric Brake: No
•Blade Diameter: 7-1/4"
•Depth of Cut at 90°: 2-7/16"
•Depth of Cut at 45°: 1-7/8"

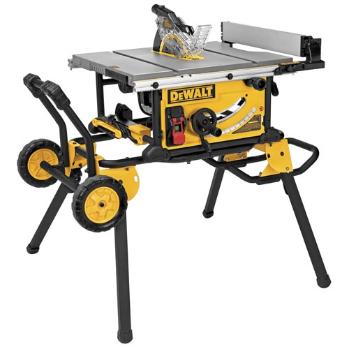

DWE7491RS - 10" Jobsite Table Saw 32 - 1/2" Rip
Capacity, and a Rolling Stand
Features:
Rack & Pinion Telescoping Fence System Make fence adjustments fast, smooth and
accurate
• Patented material support, can be used for narrow rip cuts.
• 32-1/2" Rip capacity easily cuts a variety of larger shelving and trim materials
• On Board Storage System provides easy access to the Blade Guard Assembly, fence,
riving knife, miter gage, wrenches, push stick, and cord wrap when not in use.
• Rolling stand designed for easy set up and breakdown with excellent stability
• Telescoping fence rails retract to create a small, portable package
• Flip over ripping fence Allows for narrow rip cuts
• 15 Amp Motor quickly rips through hardwoods with ease
• 2-1/2" Dust Collection Port easily connects to a vacuum for efficient dust extraction
• 3-1/8" depth of cut at 90 and 2-1/4" at 45
• 21-7/8" X 26 - 3/8" table provides superior material support

Specifications:
15.0 Amps                                 4800rpm no load speed
10" Blade Diameter                     5/8" Arbor Size
2-1/2" Dust Port Diameter            3-1/8" depth of cut at 90°
2-1/4" dpth of cut at 45°              32-1/2" max rip to right of blade
22" max rip to left of blade          13/16" max width of dado
90 lbs totol weight                       110 lbs shipping weight

                                                                                            $599.00

DW713 - 10 Single Bevel Miter Saw
Features:
15 Amp, 5,000 rpm motor delivers extended power and durability
•Stainless steel detent plate with 11 positive stops provides
repeatable accuracy and jobsite duability
•Tall sliding fences support crown molding vertically 4-1/2" and
easily slides out of the way for bevel cuts
•Machined base fence support maintains fence perpendicularity
with blade for cutting accuracy
•Cam miter lock for quick and accurate miter table positioning
•Miter detent override for fine adjustment and precise miter angles
•0-50° left and right miter capacity for greater versatility
•Bevels 3°-48° for increased cut capacity
•Lightweight (35lbs), built-in carrying handle for increased
portability
•Laser compatible, designed for use with the DWS7085 LED
worklight or DW7187 DEWALT® adjustable miter saw laser system
Specifications:
Blade Diameter: 10" •Amps: 15Amps
•No Load Speed: 5000rpm •Arbor Size: 5/8"
•Vertical Capacity: Baseboard Against Fence: 3-1/2"
•Vertical Capacity: Crown Molding Vertically Nested: 4-1/2"
•Horizontal Capacity: Baseboard Lying Flat: 6"
•Horizontal Capacity: Crown Molding Lying Flat: 5-1/4"
•45° Bevel Cut Capacity (dimensional lumber): 2x6
•90° Cross-Cut Capacity (dimensional lumber): 4x4"
•90° Cross-Cut Capacity (Max Width): 2x6 dimensional lumber
•45° Miter Cut Capacity (Max Height): 2x4
•45° Miter Cut Capacity (Max Width): 2x4
•Tool Weight: 35lbs

DW717 10" Double-Bevel Sliding
Compound Miter Saw
Features:
XPS Laser Compatible
•Cross cut positive stop for optimal cutting position
•Tall sliding fence for optimized material support
•Bevel detent system with 7 hard stops gives you accurate,
repeatable cuts
•Adjustable stainless steel miter plate
•Machined base fence insures blade perpendicularity to fence
•Cam lock miter system
•Sliding fence that supports up to 6" base molding to the left of
the blade & up to 3 1/2" to the right of the blade,
Specifications:
Blade Diameter: 10"
•Bevel Capacity: 0° - 48°
•Miter Capacity: 60° left, 51° right
•Crosscut Capacity at 0°: 2" x 14"
•Crosscut Capacity at 45°: 2" x 12"
•Vertical Capacity: 6" base molding, 6-1/4" crown molding
•Amps: 15 amps
•Net Weight: 51 lbs.
