MMD Inverter Generators

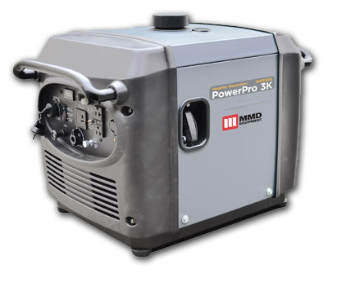

MMD Portable Inverter Generator

MMD PowerPro™ Inverter Generators provide clean and quiet portable
power. These compact and lightweight units are the perfect match for
RV, special events, construction, commercial, industrial, and residential
needs. All units produce a pure AC sine wave, ideal for running sensitive
electronic equipment.

These lightweight ultra-portable units have standard wheel-kits standard
(select models) enhancing mobility and transportation. Larger models
come with T-Lock receptacles to provide versatile use for construction
applications. They are quiet enough to use in sound sensitive recreational
areas. Units 2600w and under can be paralleled for increased power
output. SMART Throttle control regulates load that maximizes fuel
efficiency and reduces noise levels. The standard hour-meter tracks
usage and helps keep track of maintenance intervals. Single phase, DC
output 12 V at 5A. Frequency of 60 Hz. Air-cooled, single sylinder, 4-
stroke, OHV engine with electronic ignition.
Available at
Hilltop Tool Rental
Model
 IGR1000P
 IGR2000P
 IGR2600HP
 IGR3000
 IGR4300
 IGR6000H
Price
 $699.95
 $999.95
 $1,199.95
 $1,575.95
 $2,239.95
 $2,695.95
Rated AC Output
 900W
 1600 W
 2300 W
 2800 W
 4000 W
 5500 W
Rated Current
 7.5A
 13.3A
 19.2 A
 23.3 A
 33.33/16.67 A
 45.8/22.9 A
Max. Output
 1000 W
 2000 W
 2600 W
 3000 W
 4300 W
 6000 W
Parallel Operation allowed
 Yes
 Yes
 Yes
 No
 No
 No
Maximum AC Current
 8.3 A
 16.6 A
 21.6 A
 25.0 A
 35.8/17.9 A
 50/25 A
AC Voltage
 120 V
 120 V
 120 V
 120 V
 120/240 V
 120/240 V
HP @ Rated RPM
 1.74 @ 5500
 2.95 @ 4500
 4.4 @ 3600
 5.36 @ 3600
 7.4 @ 3600
 10.3 @ 3600
Starting System
 Recoil
 Recoil
 Recoil
 Recoil/Elec.
 Recoil/Elec.
 Recoil/Elec.
Displacement
 53.5 cc
 105.6 cc
 171 cc
 196 cc
 277 cc
 389 cc
Noise Level, No load/ full load
at 23'
 54/59 dB
 54/59 dB
 58/65 dB
 63/73 dB
 58/69 dB
 63/70 dB
Rated load continuous run
time
 4 hr.
 3.5 hr.
 3 hr.
 8 hr.
 5 hr.
 6 hr.
Fuel Tank Capacity
 0.7 gal.
 1.0 gal.
 1.32 gal.
 3.4 gal.
 3.4 gal.
 5.9 gal.
Measurements (l x w l h) in inches
 17.5x9.5x14.7
 20x11x16.75
 23.22x12.99x18.89
 27.5x 17x19.9
 30.9x18.5x22.4
 49x19.5x23.5
Dry weight in lbs.
 30.8
 48.5
 68
 132.2
 162
 223
Receptacles
 125V GFCI 20A
 125V GFCI 20A
 125V GFCI 20A
 125V GFCI 20A,
L5-30R 125V
T-Lock 30A
 2-125V GFCI
20A, L14-30R
125/250 V T-Lock
30A
 2-125V GFCI
20A, L14-30R
125/250 V
T-Lock 30A
